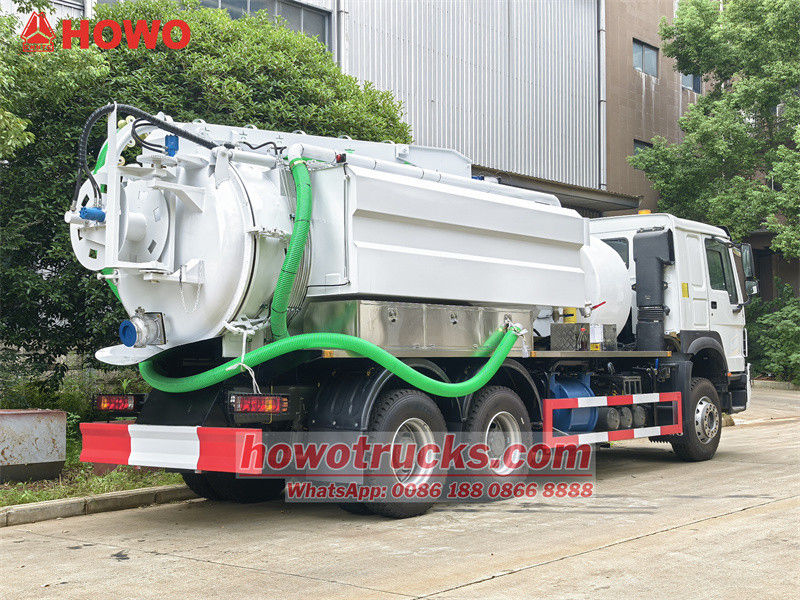

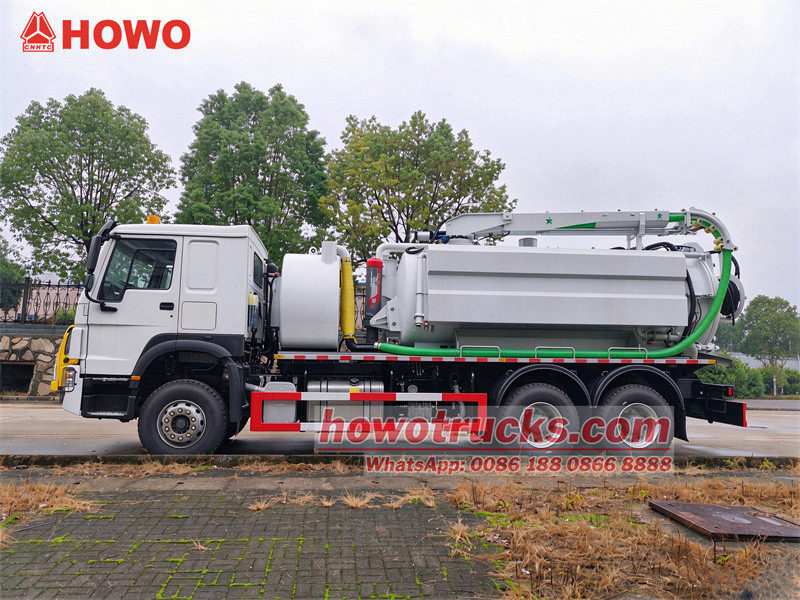

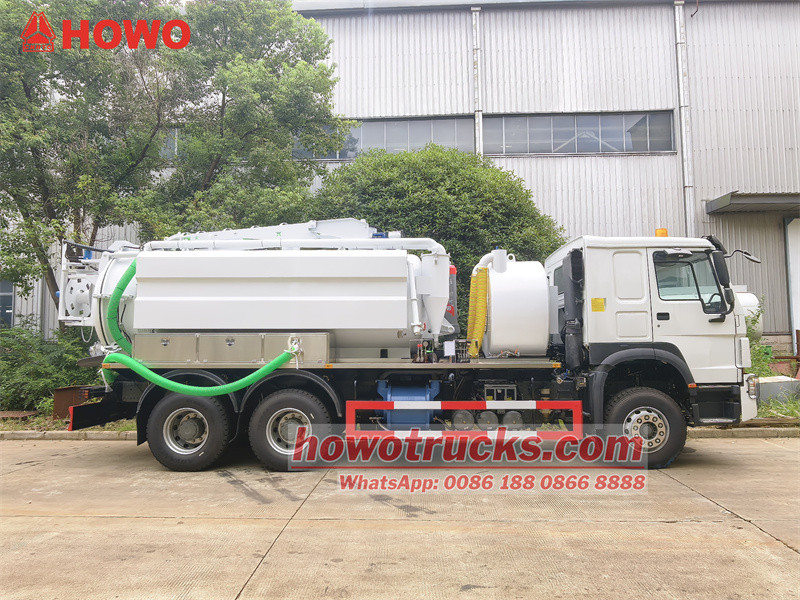

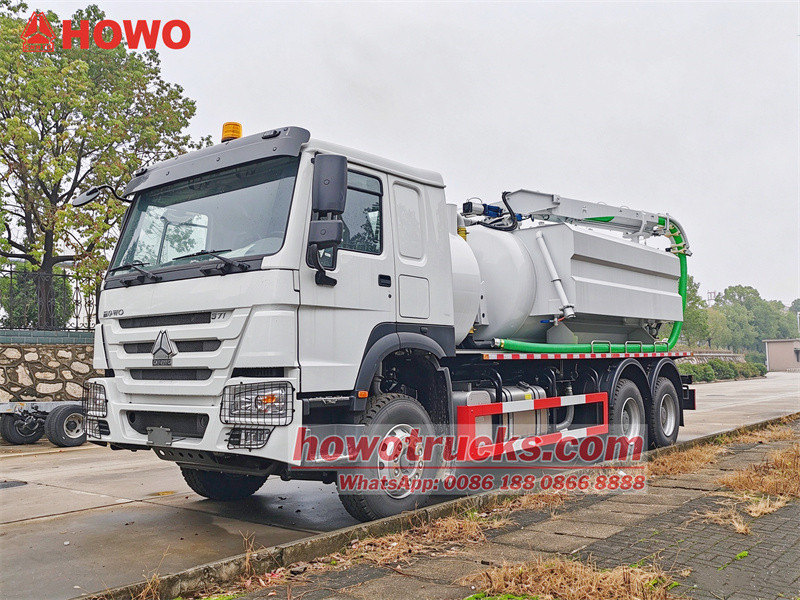

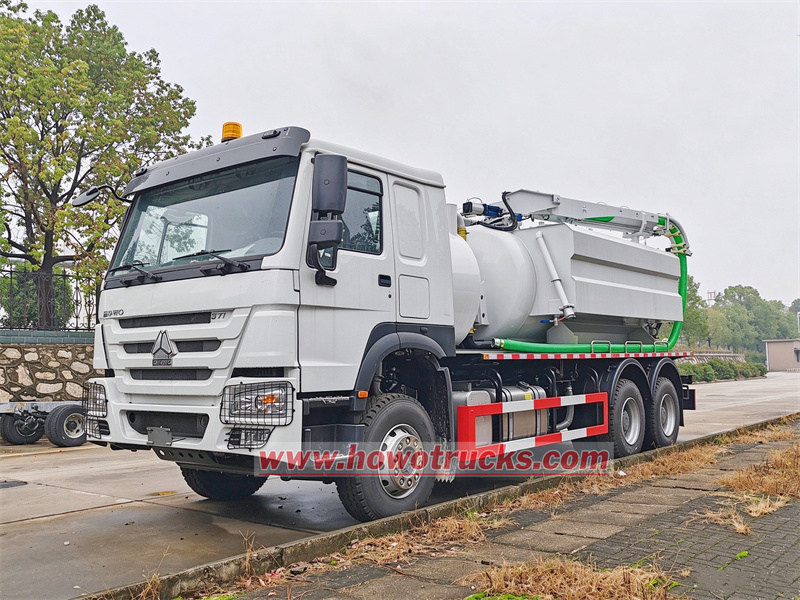

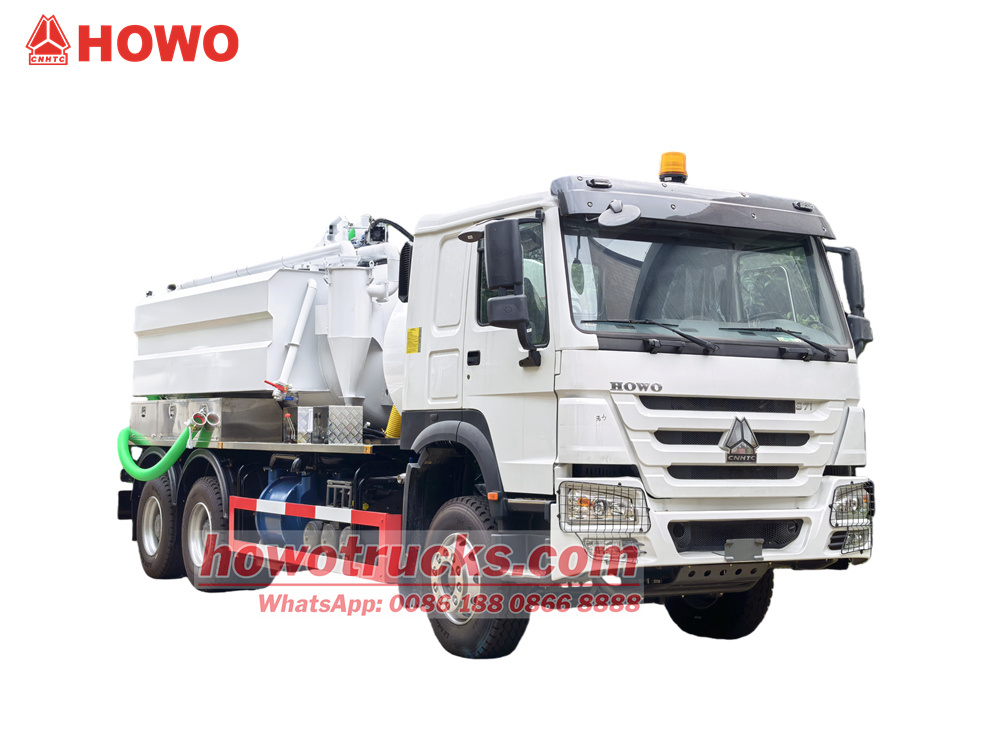

Industrial combi jetting vacuum truck HOWO
This combination sewer cleaning vehicle is built upon a Howo heavy-duty truck chassis and is designed for both industrial cleaning and vacuum suction operations. It is equipped with a VTP-3200 liquid-ring vacuum pump and a PINFL XV213 high-pressure cleaning pump, delivering exceptional performance in both sewage suction and pipeline clearing.
Iş ukyby :
10000 liters sewage tank,2000 liters cleaning water tankKabinanyň görnüşi :
HOWO HW76Ölçeg (mm) :
9850 x 2550 x 3680Sürüji ulgamy :
6x4Tigir bazasy (mm) :
4600+1350Motora mahsus :
371HP/SINOTRUK WD615.47Tizlik gutusy :
SINOTRUK HW19710 10-shift, ManualÖňki ok (kg) :
9500Yzky ok (Kg) :
13000x2Bellik :

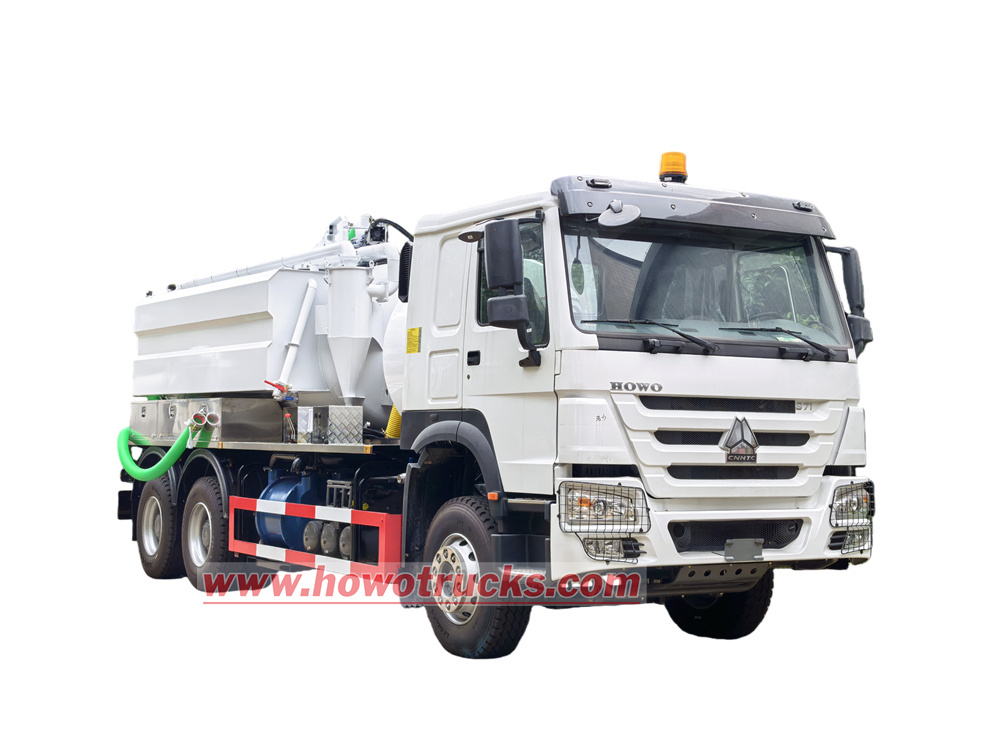

work capacity availableThis HOWO industrial combination jetting and vacuum truck is powered by a WD615.47 diesel engine (Euro II standard) with an output of 371 horsepower. It features a 10+2 m³ dual-compartment tank constructed from 6mm carbon steel, with separate compartments for clean water and sewage; the rear sewage tank is designed for hydraulic lifting. The vehicle is equipped with a Pinfu XV213 high-pressure jetting pump and a VTP 3200 liquid-ring vacuum pump, integrating the core functions of high-pressure pipeline cleaning and vacuum suction. It includes a rotating, telescopic suction boom that supports wireless remote-controlled operation, as well as a high-pressure hose reel, suction and discharge valves, a two-stage filtration system, and an anti-overflow valve. This versatile unit is suitable for a wide range of applications, including municipal sewer network desilting, cleaning of septic tanks and grease traps, extraction of sludge from construction sites, removal of sediment from industrial settling tanks, transport of sewage/waste, and emergency pipeline repairs.
▶ Product Parameters:
|
Industrial combi jetting vacuum truck HOWO |
|||
|
General |
Vehicle Brand |
CS TRUCKS |
|
|
Vehicle Model |
CS5250GXW |
||
|
Overall Dimension |
9850 * 2550 * 3680 mm |
||
|
GVW / Kerb Weight |
25000 kg / 14500 kg |
||
|
Axle loads |
7000/18000(Two-axle group) |
||
|
Cab |
Cab Capacity |
SINOTRUK HOWO HW76 6X4 chassis cab, one and half row, with A/C,USB,direction assistance |
|
|
Engine |
Fuel Type |
Inline 6-cylinder, direct injection, water-cooled, four-stroke, turbocharged and intercooled, electronically controlled high-pressure common rail, Hi+SC |
|
|
Model |
SINOTRUK WD615.47 |
||
|
Power |
371HP/ 273kW |
||
|
Rated speed |
2200rpm |
||
|
Max torque |
1500N.m |
||
|
Max torque speed |
1100-1600rpm |
||
|
Displacement |
9.726L |
||
|
Emission Standard |
Euro 2 |
||
|
Chassis |
Drive Type |
6x4, left hand drive |
|
|
Transmission |
HW19710 10-shift,10F&2R,manual |
||
|
Wheelbase |
4600+1350mm |
||
|
Axle |
Front VGD95 drum brake, 9500 kg |
||
|
Rear MCX16ZG dual-stage reduction tandem rear axles, drum brakes; 16,000 kg x 2 |
|||
|
Tyre Specification |
12.00R20 |
||
|
Tyre Number |
10 tyres and 1 spare tyre |
||
|
Superstructure |
Tank |
Tank Capacity |
10000 liters sewage tank,2000 liters cleaning water tank |
|
Tank Material |
Carbon steel |
||
|
Vacuum Pump |
High Pressure Vacuum Pump |
VTP-3200 Water circulation vacuum pump |
|
|
Max pressure |
800HPa |
||
|
Pumping rate |
53m³/min |
||
|
Rated speed |
1200r/min |
||
|
High-Pressure Pump |
Type |
PINFL XV213 |
|
|
Flow |
213 L/min |
||
|
Pressure |
16MPa |
||
|
High Pressure Hose Pipe |
30m high pressure water pipeline |
||
|
Jetting Nozzle |
Standard 10 units with different models |
||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
▶ Core Power System:
Chassis: Sinotruk Howo HW76 6×4 (dual rear-axle configuration)
• Engine: WD615.47, 371 hp, Euro II emission standard, inline 6-cylinder, turbocharged, intercooled diesel engine—delivering robust and stable power;
• Wheelbase: 4600 + 1350 mm;
• Axles: VGD95 front axle (9.5-ton capacity, drum brakes); MCX16ZG dual rear-axle assembly (16-ton capacity per axle, drum brakes, two-stage reduction);
• Transmission: HW19710, 10-speed manual transmission with 2 reverse gears;
• Tires: 12.00R20 (includes a spare tire as standard equipment).
▶ Tank Capacity:

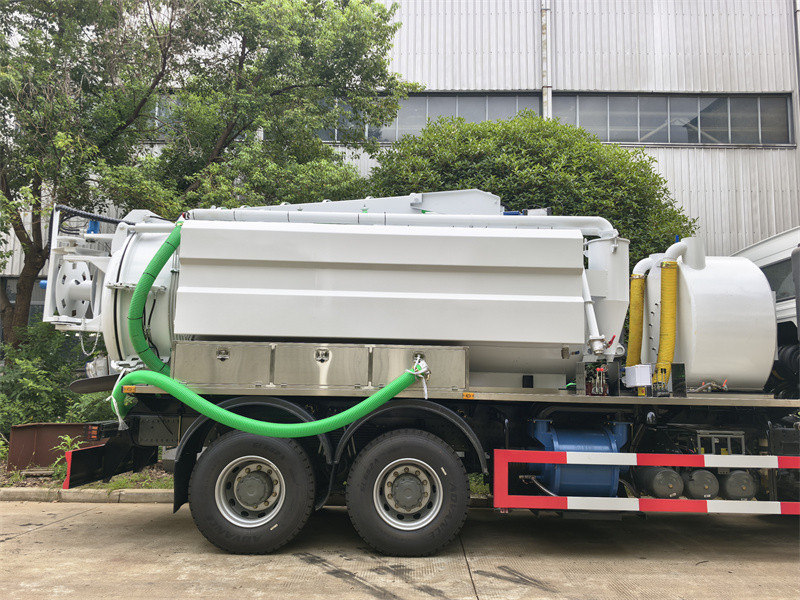

The tank is constructed from 6mm-thick carbon steel, utilizing industry-leading welding techniques. It has a total capacity of approximately 12m³ and features a dual-compartment design: a clean water compartment and a waste/sludge compartment.
• Clean water compartment: Stores water for high-pressure jetting and cleaning operations.

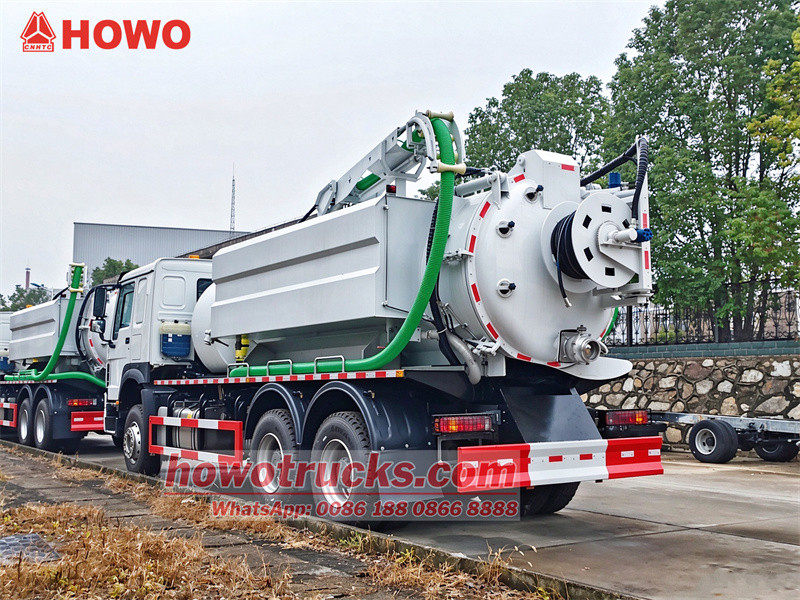

• Waste/sludge compartment: Collects and temporarily stores sludge, fecal matter, and sewage. The rear of the tank is equipped with a large, hydraulically operated door, enabling efficient, self-dumping discharge of waste and sludge.
▶ Core Operating Systems:
1. High-Pressure Cleaning System

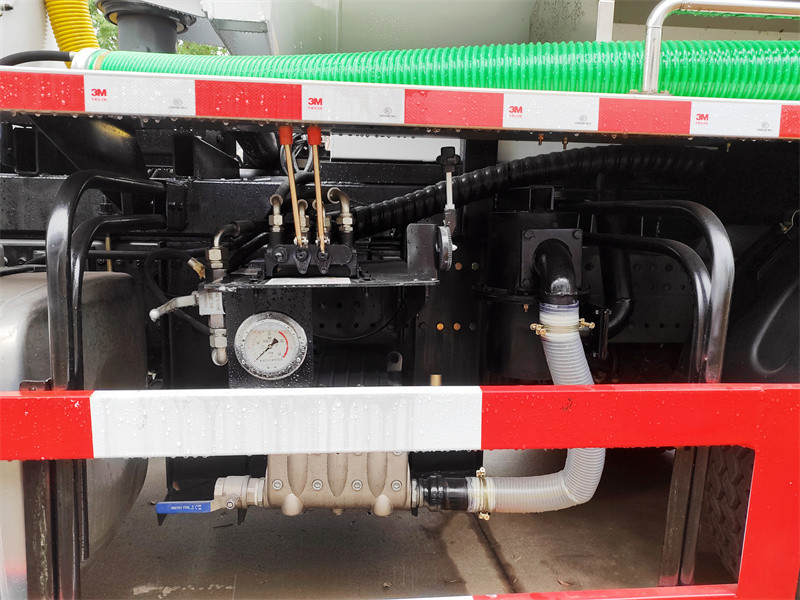

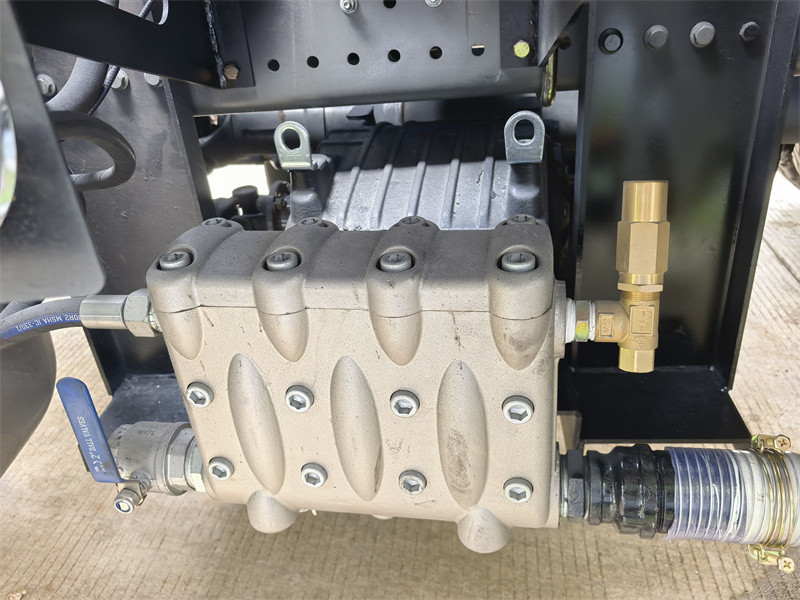

Equipped with a PINFL XV213 five-plunger high-pressure pump
• Rated flow rate: 213 L/min; operating pressure: 160 bar.
• A high-pressure hose reel is mounted at the rear of the vehicle, carrying a high-pressure jetting hose used for flushing sewer lines—breaking up accumulated silt, sediment, and grease to clear blockages in the pipe network.

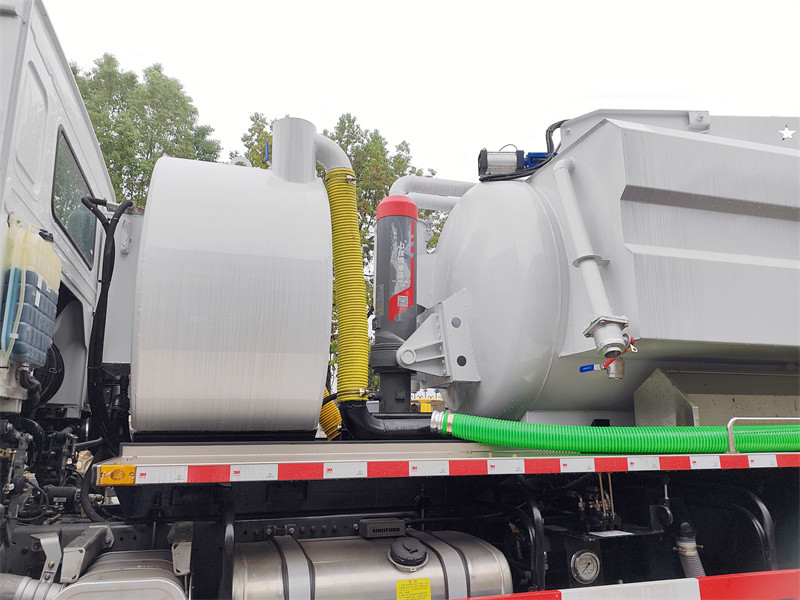

2. Vacuum Suction System
High-capacity vacuum unit designed to generate powerful negative pressure (suction).

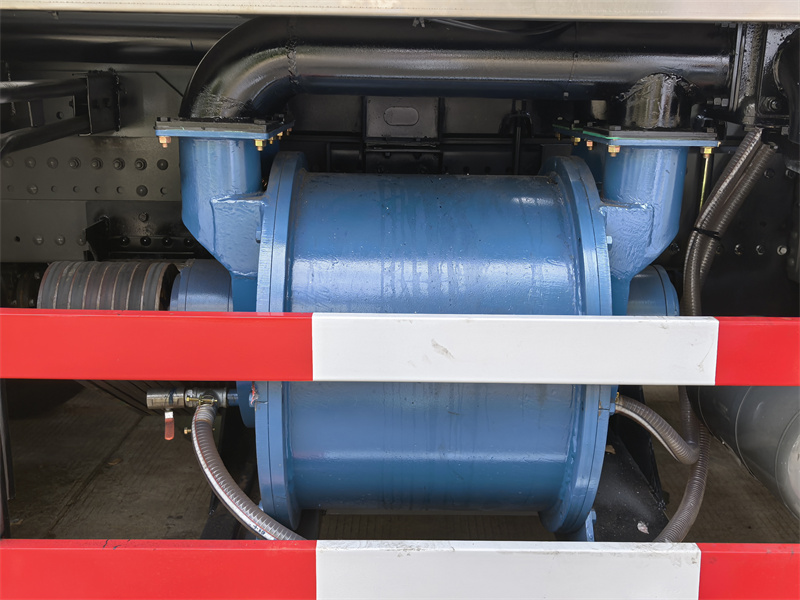

• Model: VTP-3200 water circulation vacuum pump.
• Type: Liquid-ring vacuum pump; features a direct-drive design, compact dimensions, and a lightweight build.
• Suction capacity: 53 m³/min.
• Ultimate pressure: 800 hpa.
▶ Operational Modes:

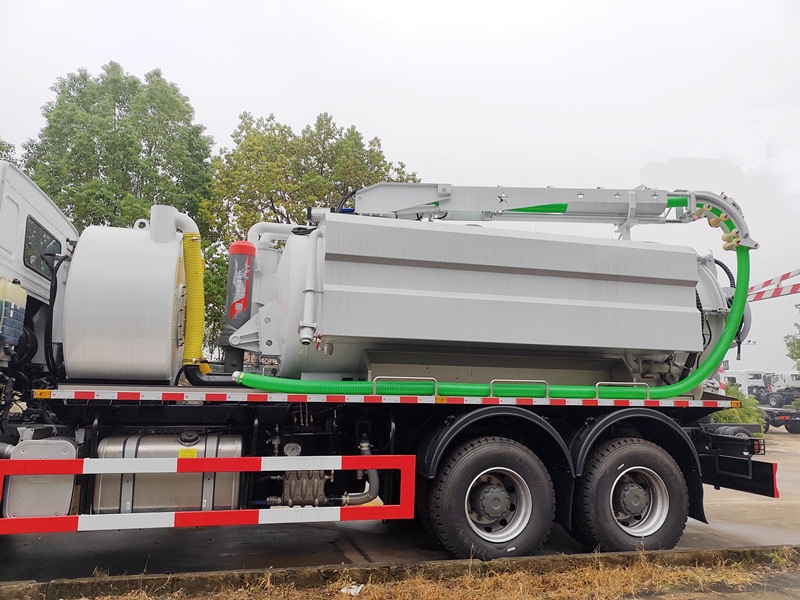

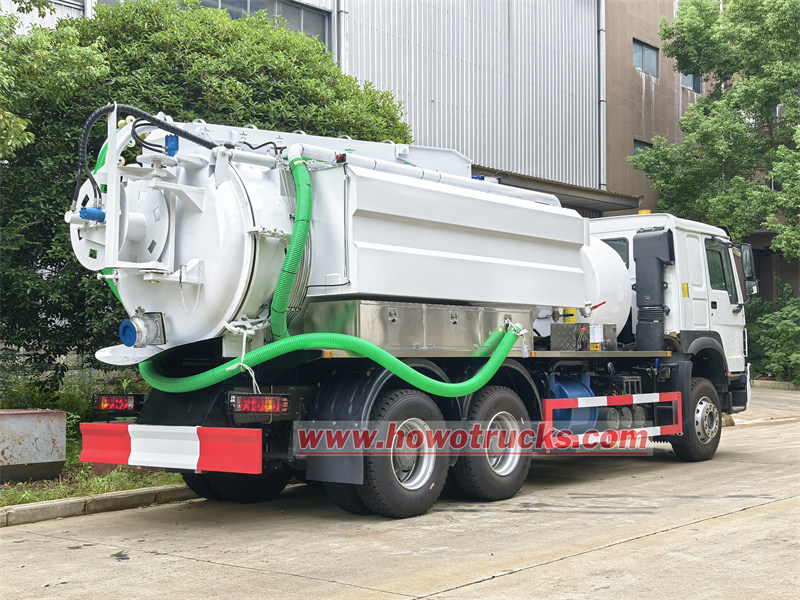

1. Equipped with an overhead hydraulic rotating suction boom. The boom features rotation, extension/retraction, and luffing (up-and-down movement) capabilities. It is fitted with a large-diameter suction hose and supports wireless remote-controlled operation.
• The boom is designed to support the large-diameter suction hose; during operation, it can be extended directly into an inspection manhole to extract sludge, sewage, or mud from septic tanks.
• This eliminates the need for manual handling of heavy suction hoses and makes it easier to navigate over obstacles.

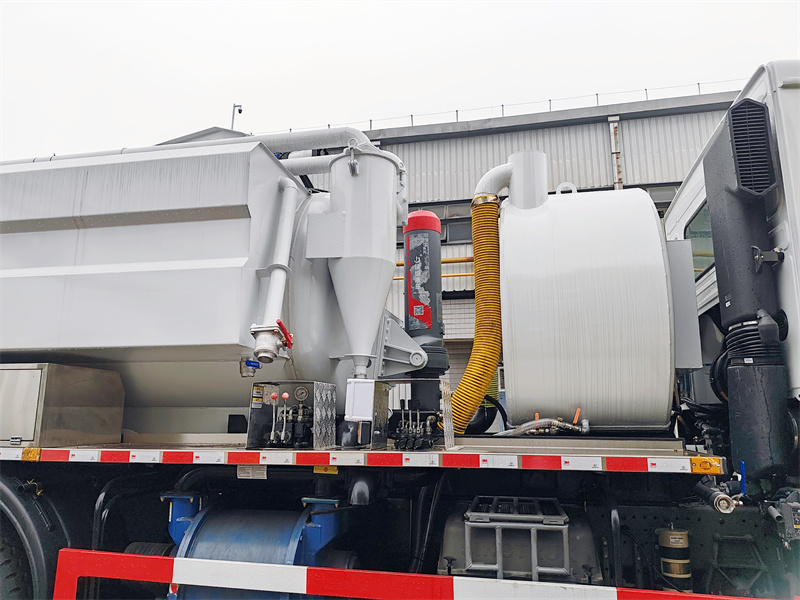

2. Includes a standard suction piping system with an external suction hose connection and a two-stage filtration system.
3. High-pressure jetting/clearing: Features a PINFL XV213 high-pressure plunger pump. A high-pressure water jet, delivered via a hose on a reel, is fed into the underground pipe network to break up accumulated sediment, grease, and tree roots, thereby clearing blockages in municipal pipelines.

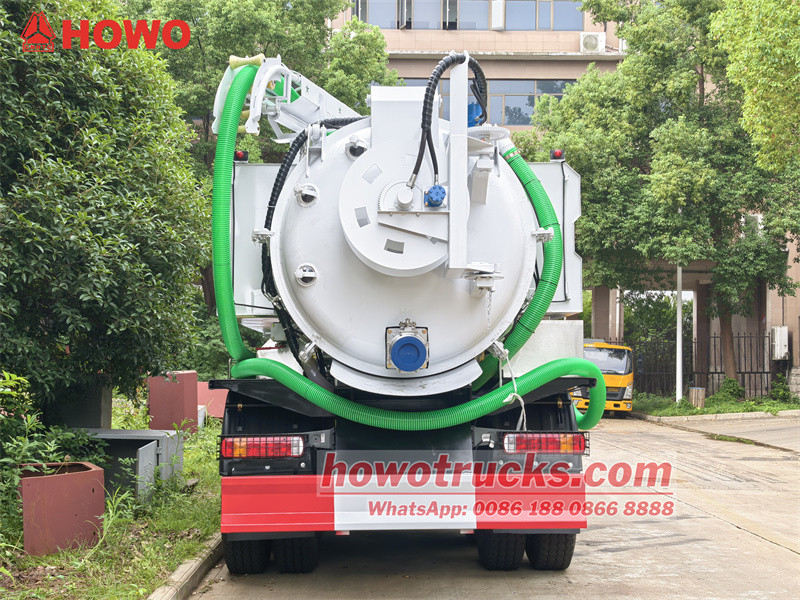

4. Discharge: The tailgate is equipped with a discharge valve, allowing for pressurized unloading via the vacuum pump. Alternatively, the tailgate can be opened and the tank raised to discharge waste by gravity.
▶ Operations:

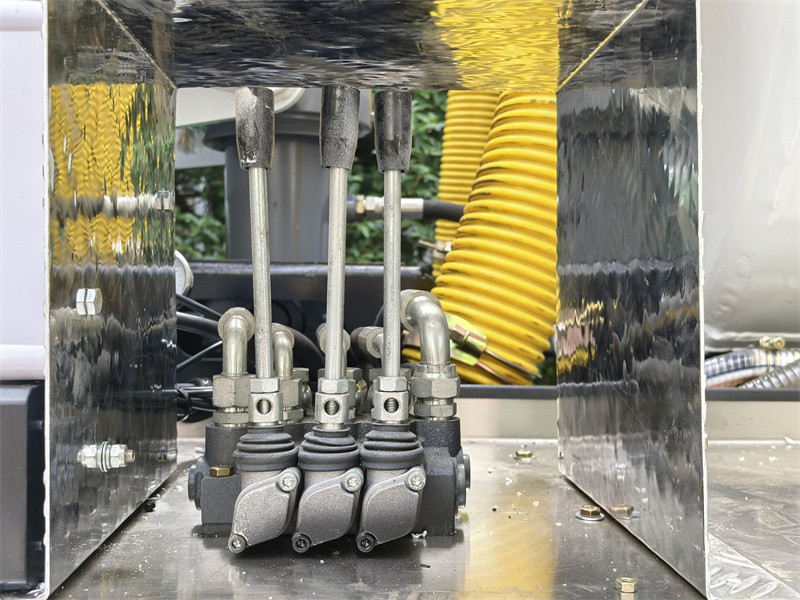

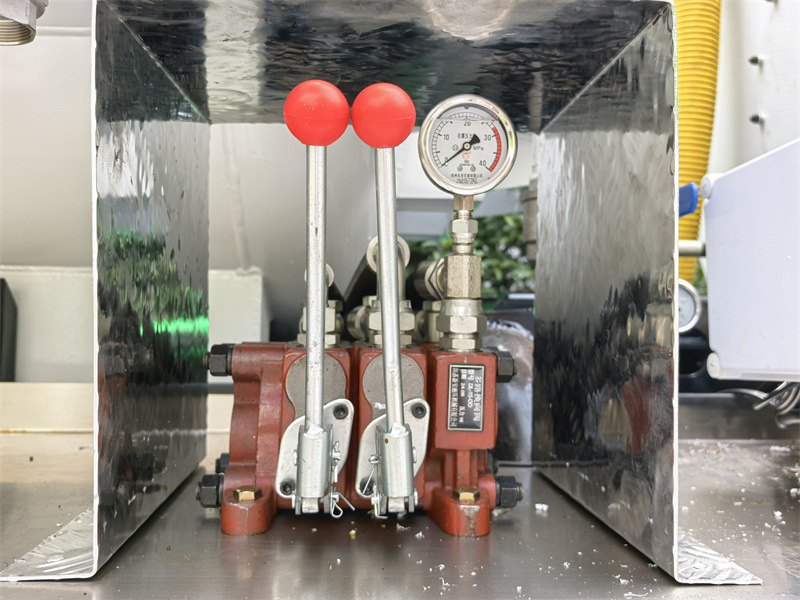

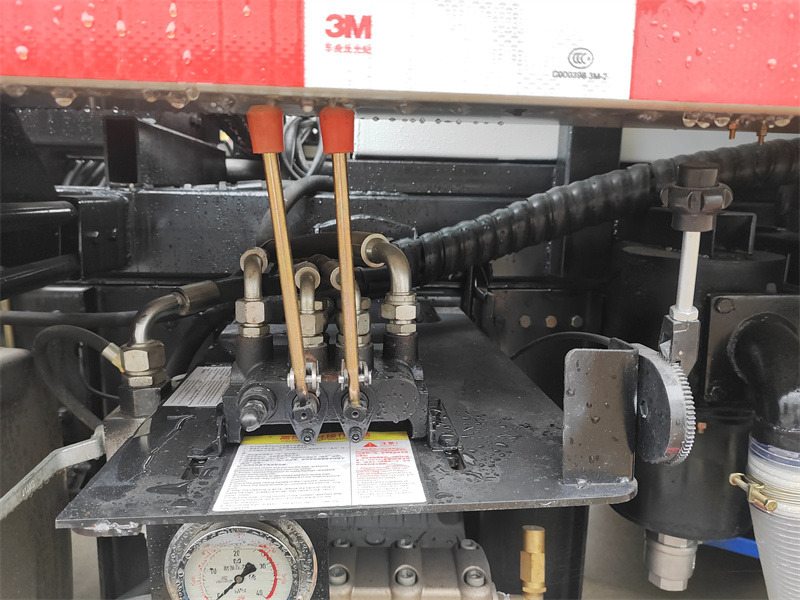

1. Equipped with control valves for lifting the sewage tank and opening the tailgate.
2. Equipped with control valves for the boom, enabling the control of its rotation, luffing (elevation/lowering), and extension/retraction.
3. Equipped with control valves for the high-pressure hose reel (mounted on the tailgate) and for pipeline cleaning operations.
4. Remote control functionality for the rotation, luffing, and extension/retraction of the suction boom.
▶ Application Scenarios:
1. Municipal Engineering: Desilting and clearing of urban stormwater and sewage pipe networks; cleaning of inspection chambers and sediment traps; maintenance of pipe networks and emergency repairs for pipeline blockages.
2. Sanitation and Facility Operations: Suction and removal of sewage, grease, and sludge from septic tanks and grease traps in residential complexes, schools, and office buildings.
3. Industrial Parks: Removal of sludge from factory sedimentation and equalization tanks; maintenance of underground sewage and stormwater drainage systems within industrial facilities.
4. Construction Sites: Suction of slurry from excavation pits and sludge from on-site sedimentation tanks; desilting and clearing work associated with the modification of utility pipe networks.
5. Property Management and Tourism/Cultural Sites: Maintenance of pipe networks in large-scale complexes and tourist attractions; removal of bottom sediment from ornamental ponds.
6. Agriculture and Animal Husbandry: Suction and transport of manure and waste from livestock farms; desilting of small ditches and channels.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
