How to choose heavy duty Sinotruk HOWO NX hook lift garbage truck?

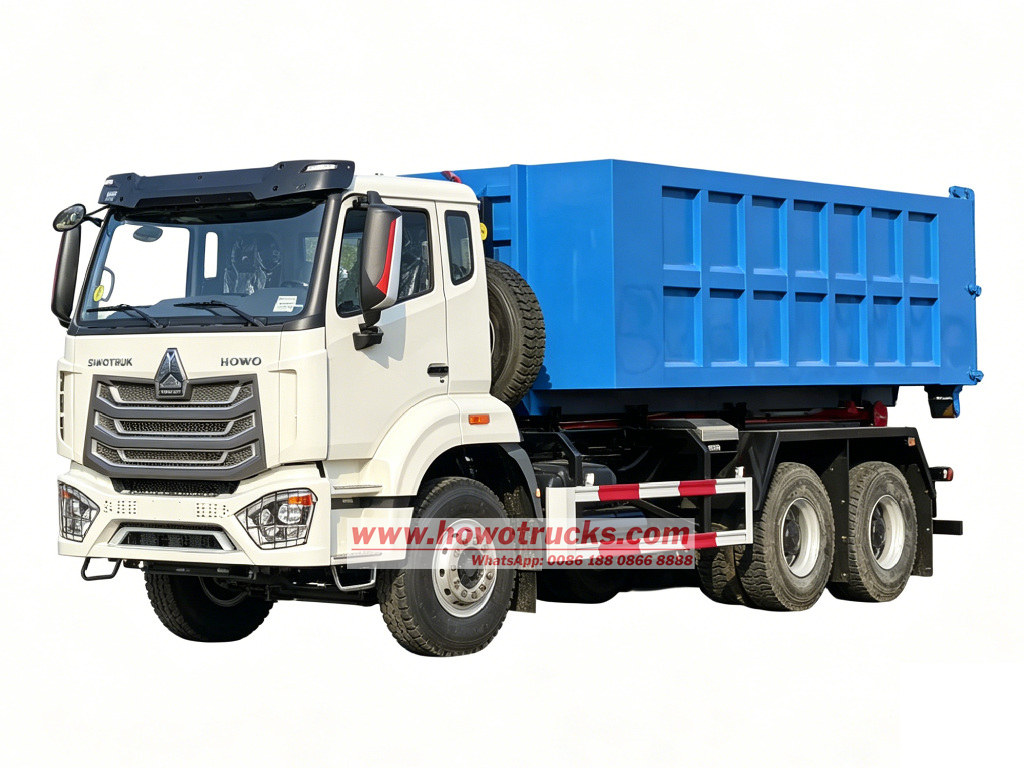

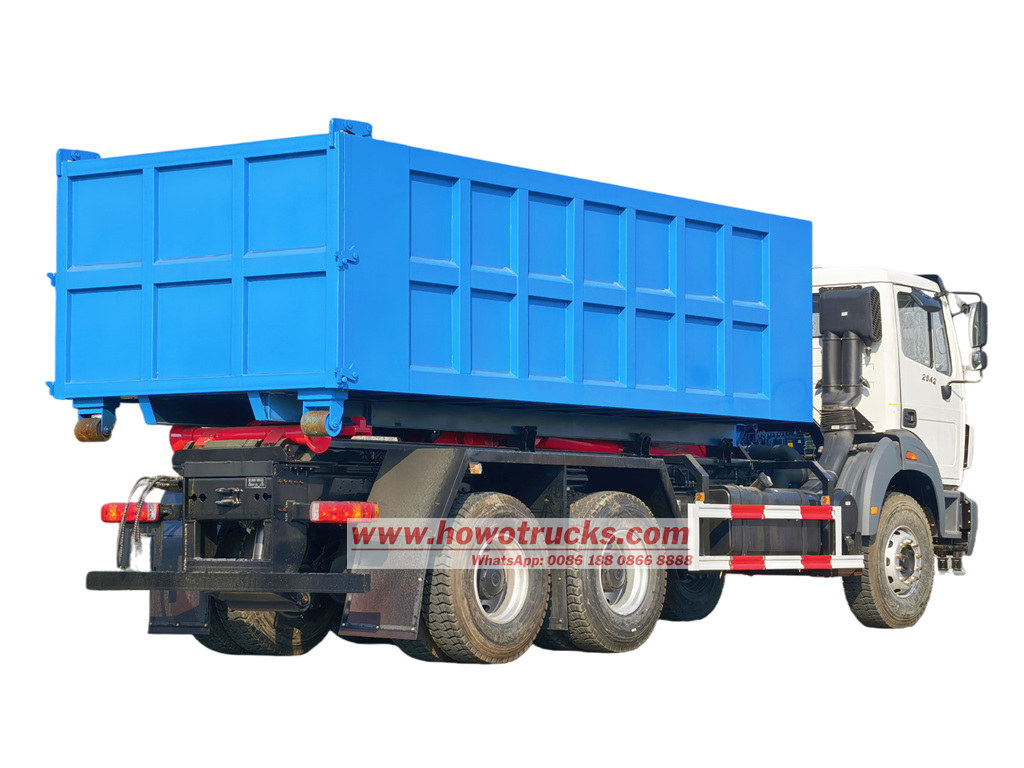

What is HOWO NX 20tons Hook Loader Garbage Truck?

Sinotruk HOWO hook loader truck is designed and produced based on HOWO NX model 6x4 heavy duty truck chassis, equipped with WEICHAI WD615.47 diesel engine, 272KW / 371HP with emission 9726cc, matched with HOWO HW19710 manual gearbox, 10 forward and 2 reverse back, very lower fuel consumption. Matched working with 20tons hook loader upper body kit, also equipped with rear hydraulic stabilizer for safety support, and equipped with strong garbage bin with size 5600x2400x1500mm, efficiently volume can be 20cubic meters, with advantages as lower gravity center, convenient for maintenance, safety for driving and transportation. And the HOWO NX 10 wheeler hooklift truck with heavy loading ability, widely used for mining project and garbage transportation.

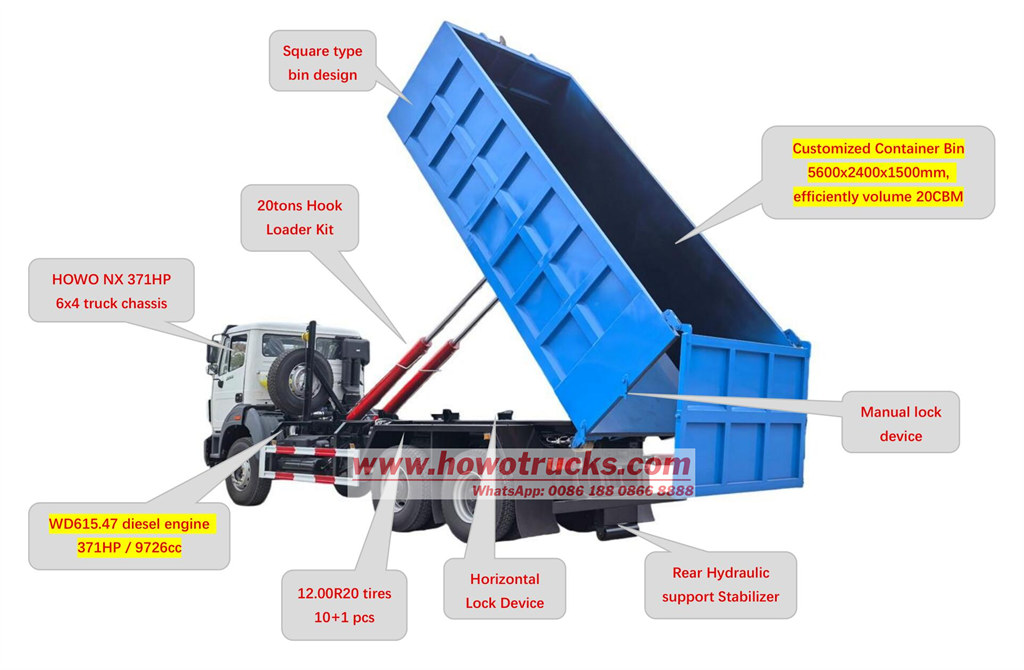

Main Component for HOWO 20tons Hooklift?

Technical Drawing and Parameters for HOWO Roll Off Garbage Truck?

Name	HOWO NX Hooklift
Engine	WEICHAI WD615.47 diesel engine, 371HP and 9726cc
Transmission	HW19710 manual gearbox
Wheelbase	4500+1350mm
Tire	12.00R20
Cabin	HOWO NX
Driving Model	LHD / RHD
Painting	Customized painting and logo



Upper Body	Hook loader body kit
Container Model	Open top type Full sealed type
Capacity	20Tons / 20000kg
Safety Device	Rear hydraulic stabilizer Horizontal hydraulic lock
Control	In cabin electric control box Wireless control box Hydraulic control valve

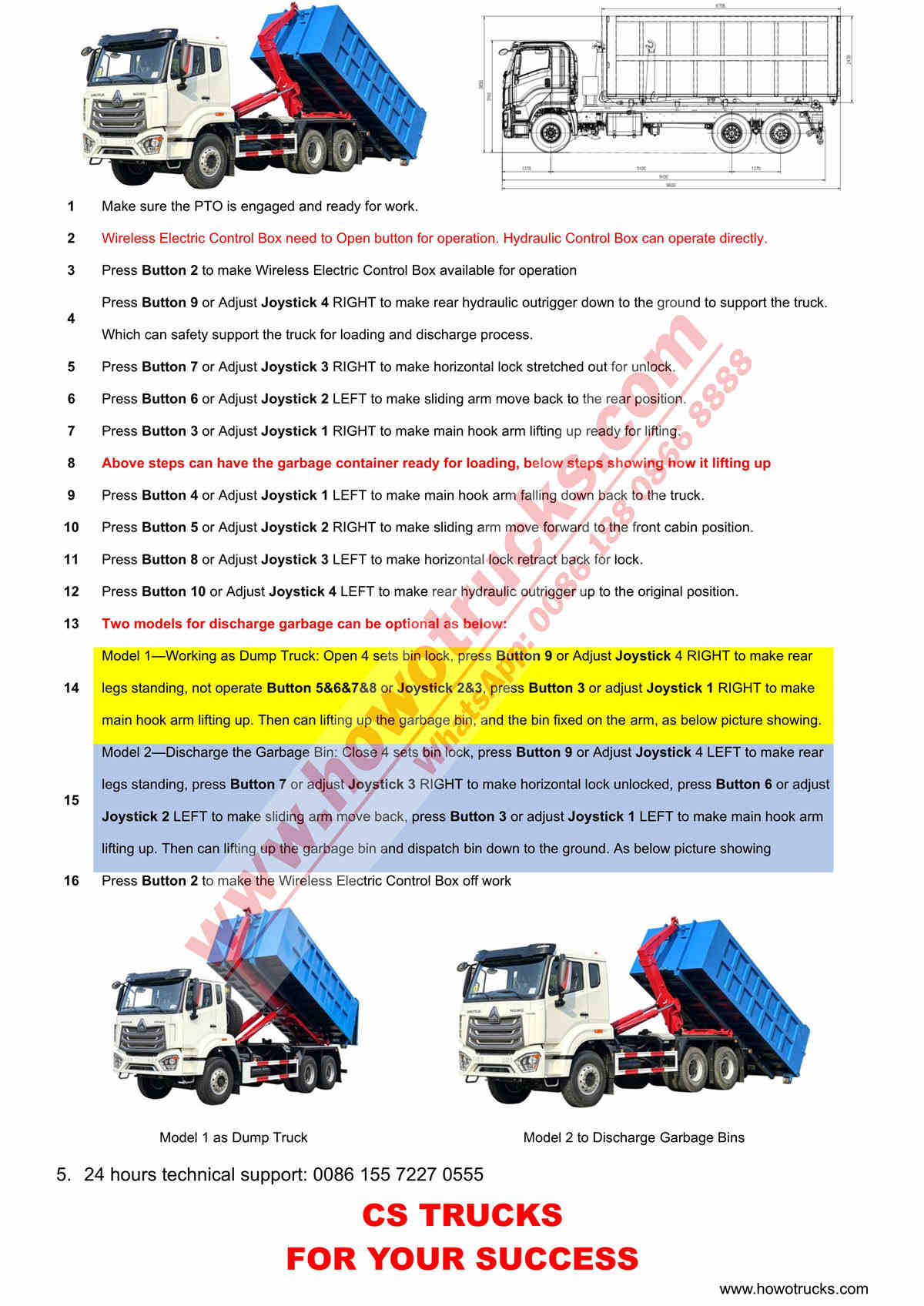

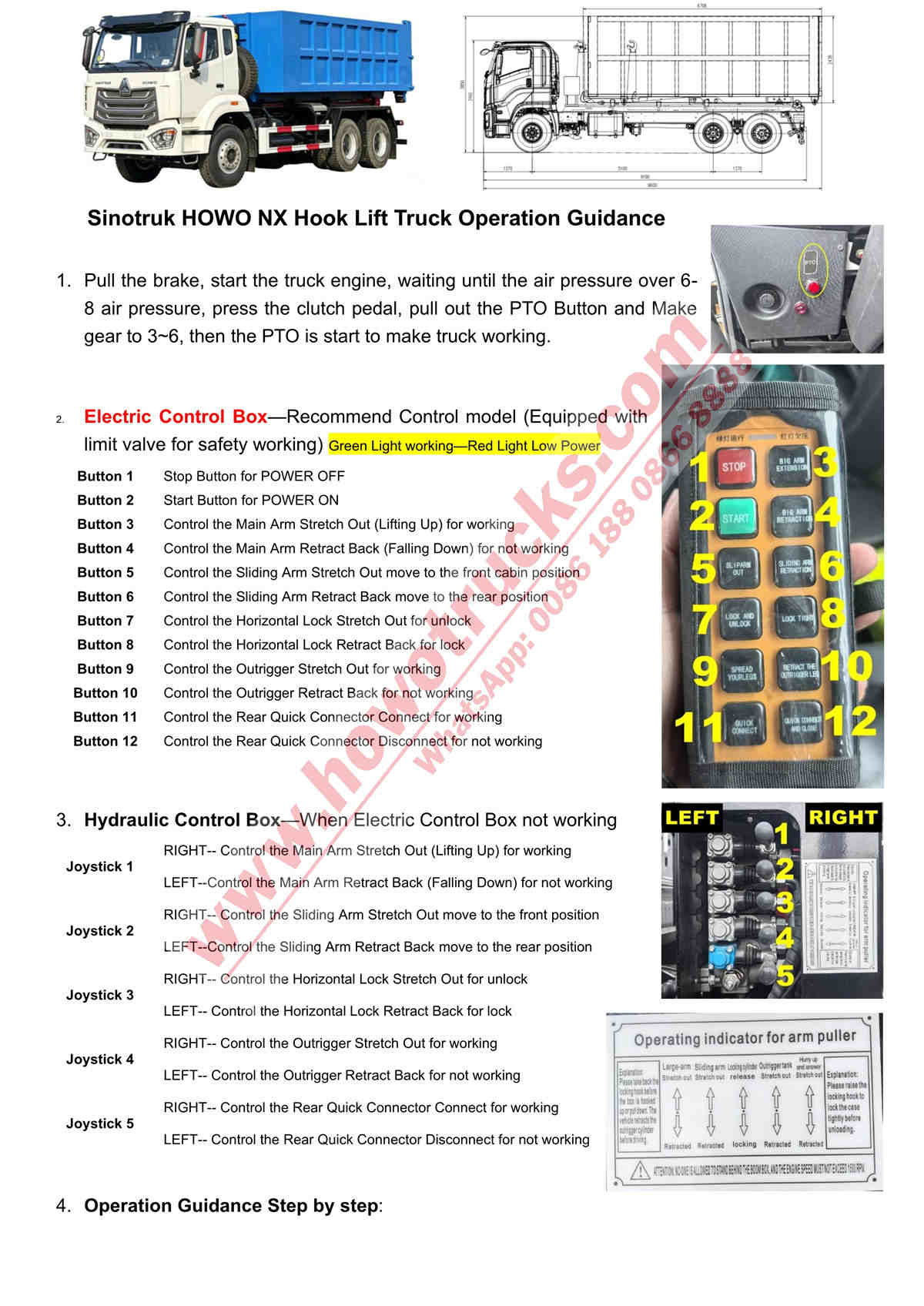

How to operate HOWO 6x4 hooklift garbage truck?

Start truck engine, engaged the truck PTO and then can use the control system to operate truck, Wireless control box, electric control box and hydraulic control valve all available for efficiently operate. Detailed operation guidance as below showing:
