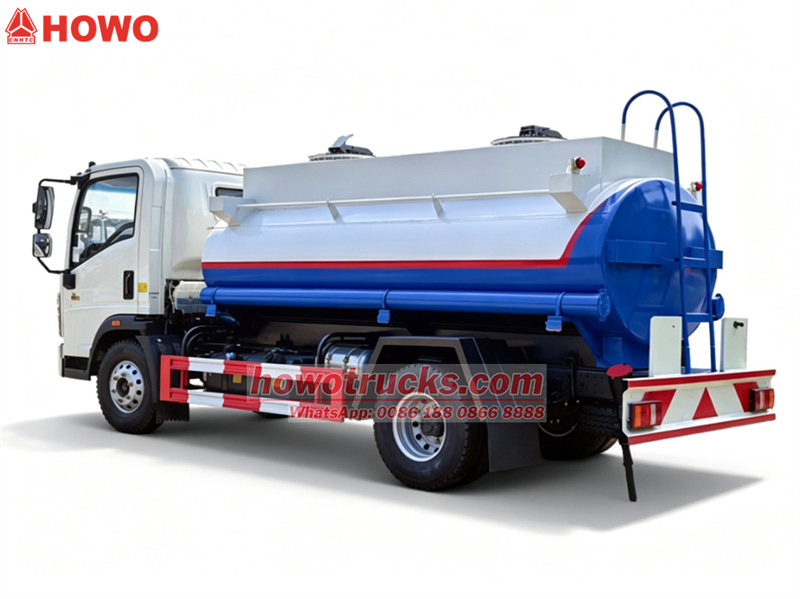

HOWO 5000L steel water hauling tanker
The HOWO Light5000L Mobile Fuel Bowser is a dedicated refueling tanker engineered for urban fuel distribution scenarios.The YC4E140-33 inline four-cylinder water-cooled turbo intercooled diesel engine rated at 140 horsepower, this HOWO fuel tanker mates the powertrain to a 6-forward + 1-reverse transmission paired with a light-duty diaphragm clutch. Delivering abundant power and precise handling, it adapts perfectly to fuel transportation tasks across diverse road conditions.
Iş ukyby :
5000LKabinanyň görnüşi :
HOWO single cabin, with one sleeperSürüji ulgamy :
4x2Tigir bazasy (mm) :
3800Motora mahsus :
YC4E140-33Tizlik gutusy :
WLY6TS55, 6 forwards & 1 reversesÖňki ok (kg) :
4500Yzky ok (Kg) :
7000The HOWO Light 5000L Mobile Fuel Bowser is a dedicated refueling tanker engineered for urban fuel distribution scenarios.The YC4E140-33 inline four-cylinder water-cooled turbo intercooled diesel engine rated at 140 horsepower, this HOWO fuel tanker mates the powertrain to a 6 forward + 1 reverse transmission paired with a light-duty diaphragm clutch. Delivering abundant power and precise handling, it adapts perfectly to fuel transportation tasks across diverse road conditions.
Its fuel tank boasts an effective capacity of 5000L, constructed from Q235 carbon steel with a wall thickness of minimum 4 mm for reliable structural protection. Fitted with well-known Chinese brand fuel pumps, valves, pipeline assemblies and a complete fuel dispensing unit, the tanker comes with an access ladder for convenient operational access. Custom multi-compartment tank layouts are available upon request to meet diversified fuel transportation demands.

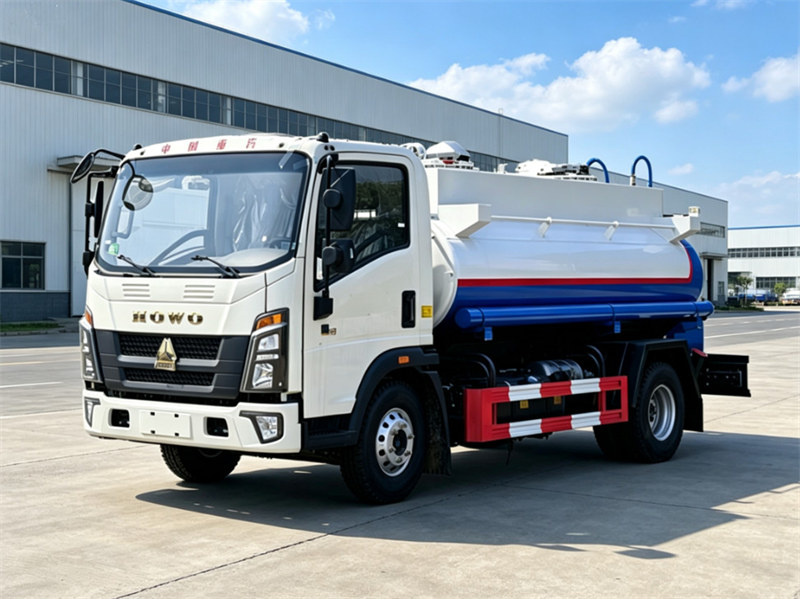

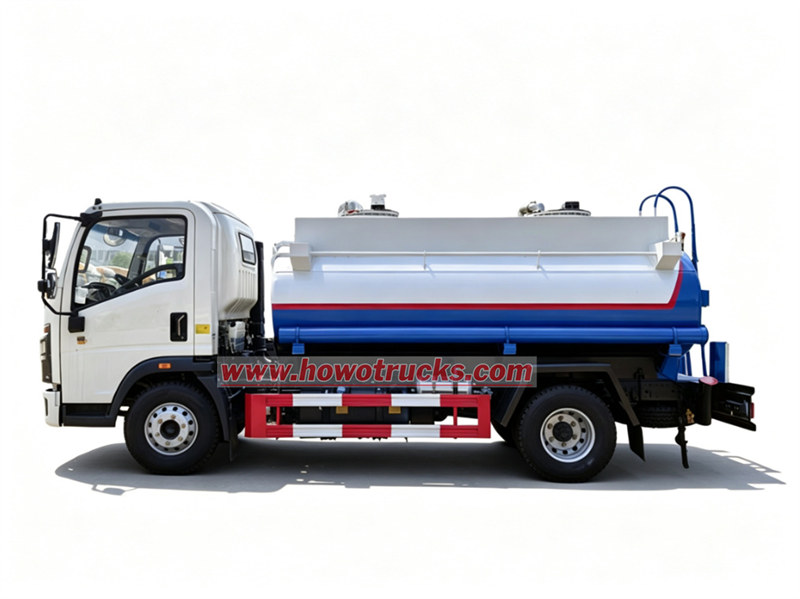

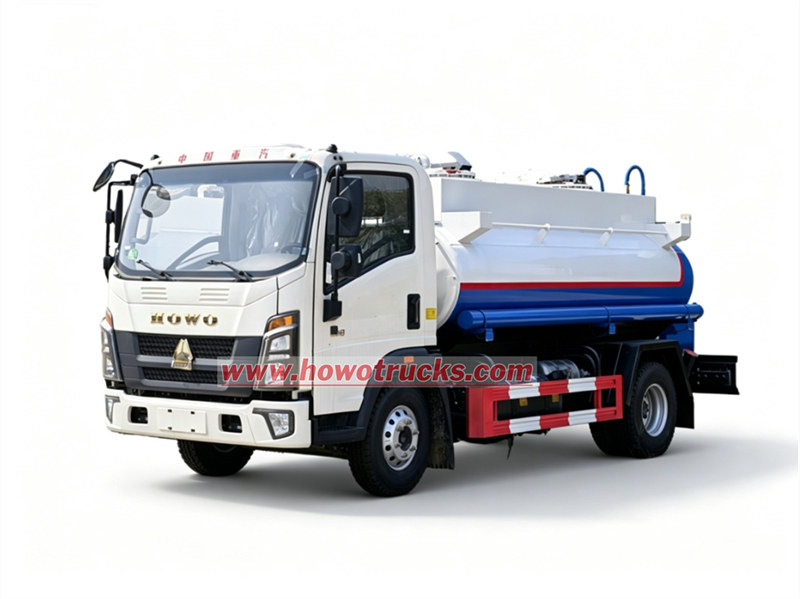

*HOWO Light 4x2 Fuel Bowser Tank Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in HOWO truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
✦ Ⅱ.Product Parameter For HOWO Diesel Pump Truck « « «
|
HOWO Light 4x2 Fuel Tank Truck |
||
|
Drive system |
4X2 |
|
|
Chassis |
HOWO |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
6300*2485*2550 |
|
Wheel base (mm) |
3800 |
|
|
Overhang (front/rear) (mm) |
580/820 |
|
|
Wheel track (front/rear) (mm) |
1531/1640 |
|
|
Approach/Departure angle(°) |
19/10 |
|
|
Weight in KGS |
Curb Weight |
4200 |
|
GVW. |
7600 |
|
|
Max. driving speed(km/h) |
105 |
|
|
Engine |
Model |
YC4E140-33 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
140 HP |
|
|
Emission standard |
Euro 3 |
|
|
Gearbox |
WLY6TS55, 6 forwards & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
100L |
|
|
Tire |
8.25R20 6 pcs+1 spare tire |
|
|
UPPER |
||
|
Fact cubage |
5000Liters |
|
|
Protective material |
Q235 carbon steel |
|
|
Tank meterial |
<4mm> carbon steel |
|
|
Equipment |

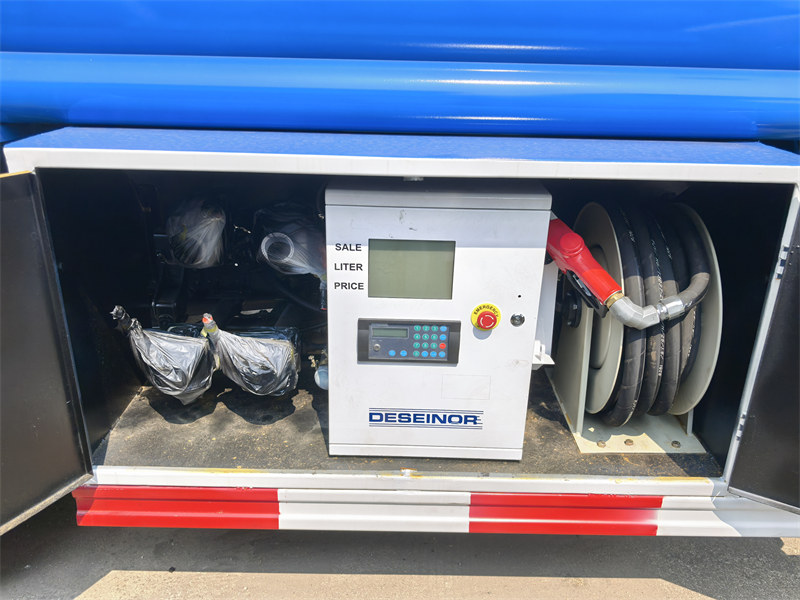

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser |
|

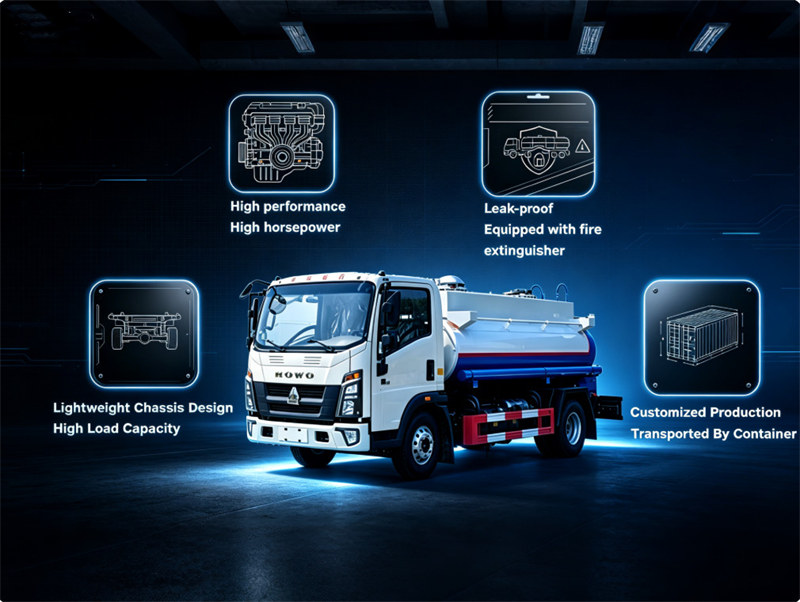

✦ Ⅲ. HOWO Light 5000L Fuel Pump Truck « « «
♦ The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.
♦ The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.
♦ The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

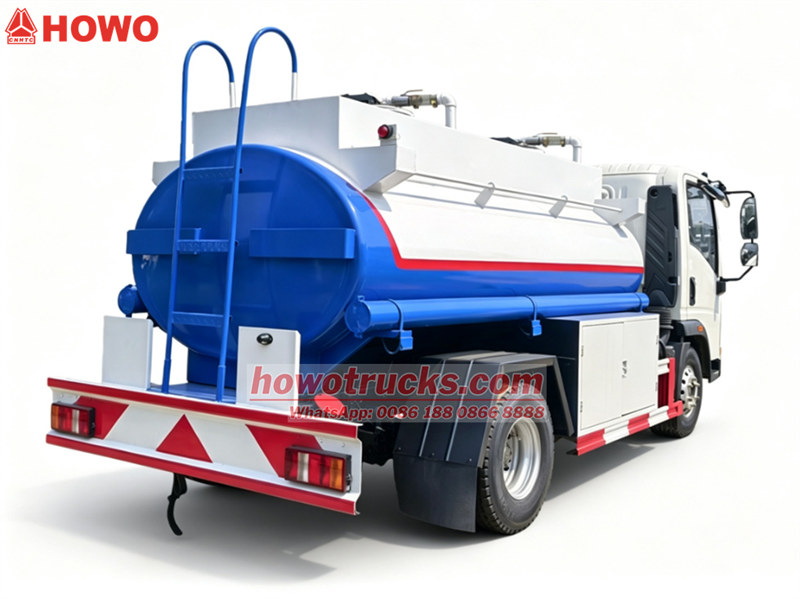

♦ The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.
♦ The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.
♦ The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.
♦ The tank opening is a φ500 diameter hole for maintenance and repair.

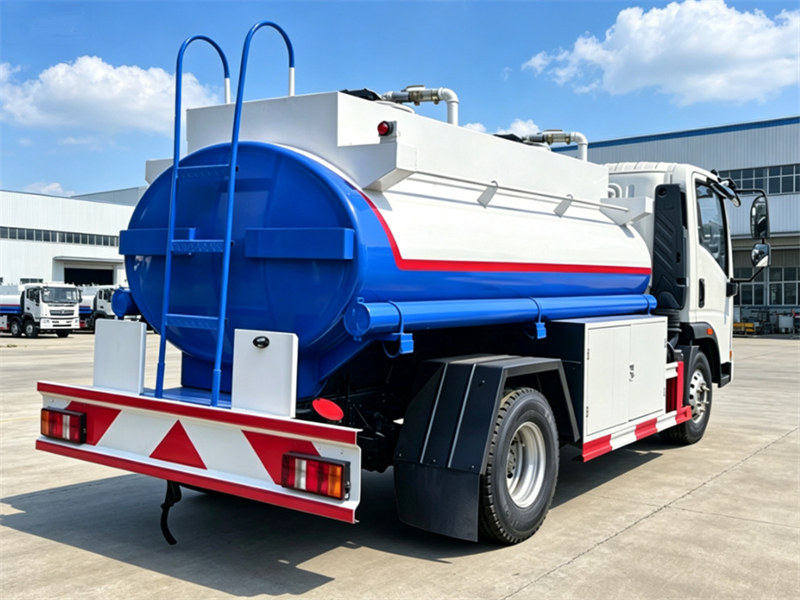

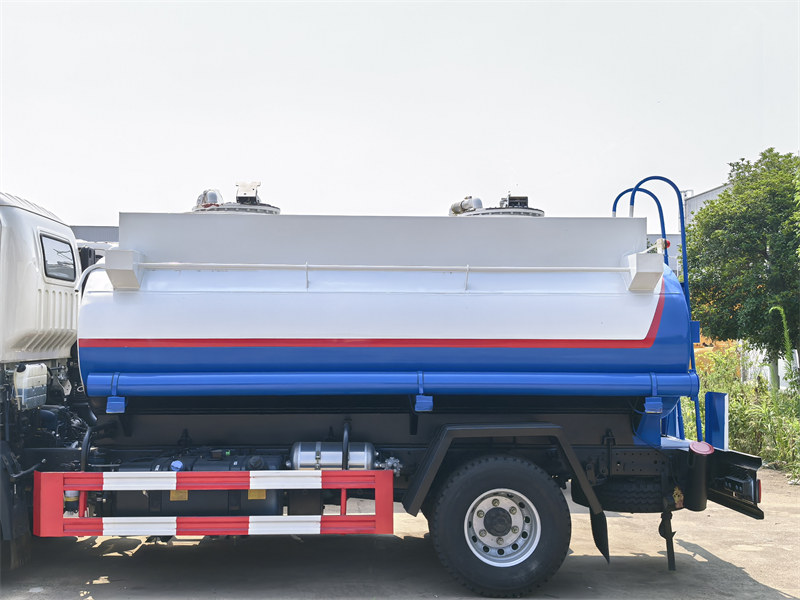

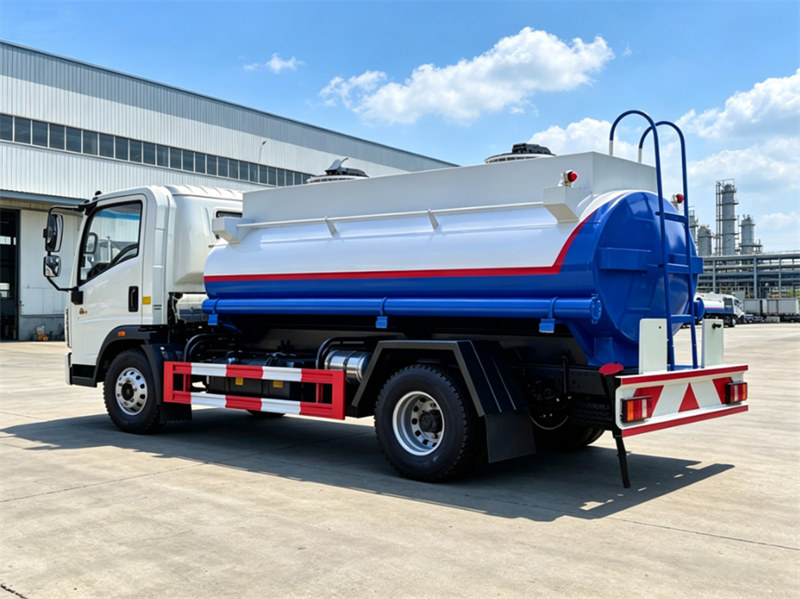

✦ Ⅳ.HOWO Light Fuel Tank Truck Details « « «

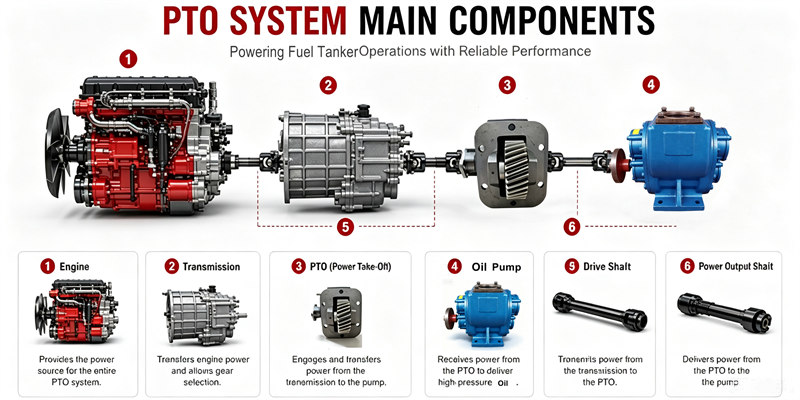

The gear pump is the core component of an oil truck, acting as its "heart" for efficient fluid transfer. It operates via a pair of meshing gears inside the pump body, which work together to create pressure differentials and move oil.
When the drive gear shaft rotates counterclockwise, it turns the driven gear clockwise. This expands the right cavity (suction side) between the meshing gears, lowering pressure and forming a partial vacuum. Atmospheric pressure then pushes oil from the reservoir into the pump’s suction port, filling the gaps between gear teeth.
As the gears rotate, oil trapped in the tooth spaces is carried to the left cavity (discharge side). Here, gear meshing reduces the cavity volume, increasing pressure to force oil out through the discharge port. This continuous suction-discharge cycle delivers a steady oil flow to machinery lubrication points.
This simple, durable mechanism makes gear pumps highly reliable for oil truck use, ensuring consistent performance even in demanding conditions.
 |
 |
|
Part Name |
Qty. |
Material |
|
Pump Cover |
1 |
Gray Cast Iron HT200 |
|
Pump Body |
1 |
Gray Cast Iron HT200 |
|
Paper Gasket |
1 |
— |
|
Gear Shaft |
1 |
45# Carbon Steel (z=10, m=4) |
|
Driven Gear |
1 |
45# Carbon Steel (z=10, m=4) |
|
Driven Shaft |
1 |
45# Carbon Steel |
|
Nut |
1 |
Q235-A Carbon Steel |
|
Gland |
1 |
Gray Cast Iron HT200 |
|
Steel Ball |
1 |
45# Carbon Steel |
|
Spring |
1 |
65Mn Spring Steel |
|
Adjusting Screw |
1 |
Q235-A Carbon Steel |
|
Protective Nut |
1 |
Q235-A Carbon Steel |
|
Circular Arc Gear Oil Pump |
|
|
Model |
80YHCB-60 |
|
Pressure |
0.6 MPa |
|
Flow |
60 m³/h |
|
Power Supplied |
11 KW |
|
Rotational Speed |
970 r/min |

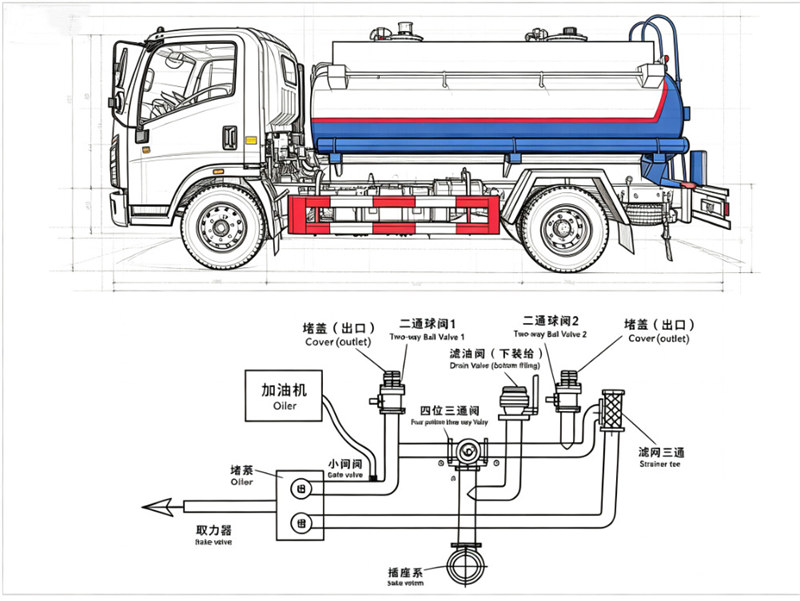

✦ Ⅴ.HOWO Fuel Truck Pipeline Operation Diagram « « «
♦ Pump out:
(1) Turn the four-position three-way ball valve mark point to the direction of forward B);
Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other
(2) Open two-way Ball Valve 1to pump oil;
(3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be achieved refueling refueling machine.
♦ Pump in:
(1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;
(2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.
(3) Other functions:The user can adjust and realize various functions according to the oll circult principle.
✦ Ⅵ.HOWO Fuel Truck Safety Protection Devices « « «
♦ The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.
♦ A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.
♦ To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.
♦ Fire extinguishers are provided on both sides of the oil tank.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
