Sinotruk HOWO back loading garbage truck
The Sinotruk HOWO back loading garbage truck boasts high-horsepower power, large capacity, and easy operation, precisely matching the core needs of efficient sanitation and waste collection in Africa. Its durable and highly adaptable hydraulic system, body structure, and compression mechanism specifically address the high wear and tear and high load challenges of the African operating environment. Meeting China's National II/III emission standards, offering low-cost operation, and strong environmental tolerance, it perfectly aligns with the current state of sanitation management and economic capabilities in Africa. It alleviates the pressure of "garbage siege" while adapting to complex local road and climate conditions, simultaneously reducing labor and maintenance costs.
Iş ukyby :
20CBMKabinanyň görnüşi :
Heavy duty single cabin, with sleeperSürüji ulgamy :
6x4Tigir bazasy (mm) :
4600+1350 mmMotora mahsus :
WP10.340E22 model 340HP, Euro 2Tizlik gutusy :
HW19710, manual 10F and 2RÖňki ok (kg) :
7500Yzky ok (Kg) :
13000*2The Sinotruk HOWO back loading garbage truck boasts high horsepower power, large capacity, and easy operation, precisely matching the core needs of efficient sanitation and waste collection in Africa. Its durable and highly adaptable hydraulic system, body structure, and compression mechanism specifically address the high wear and tear and high load challenges of the African operating environment. Meeting China's National II/III emission standards, offering low-cost operation, and strong environmental tolerance, it perfectly aligns with the current state of sanitation management and economic capabilities in Africa. It alleviates the pressure of "garbage siege" while adapting to complex local road and climate conditions, simultaneously reducing labor and maintenance costs.

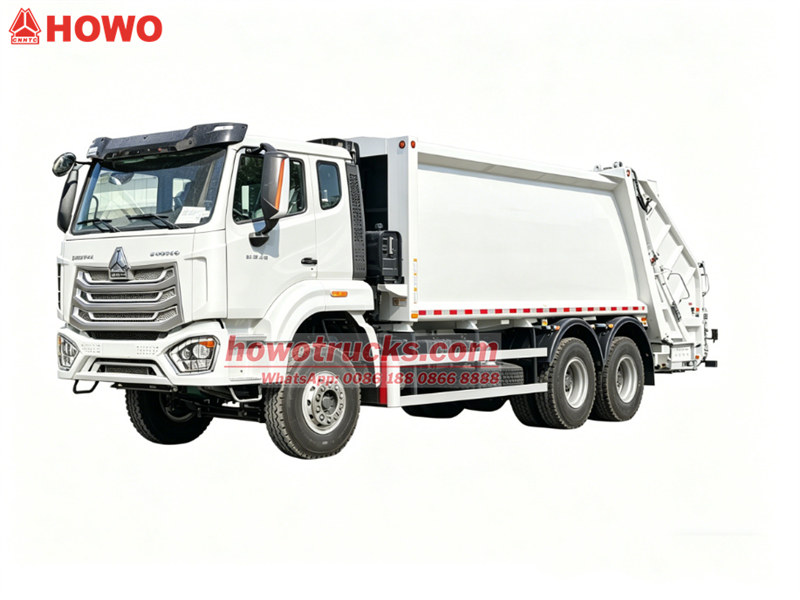

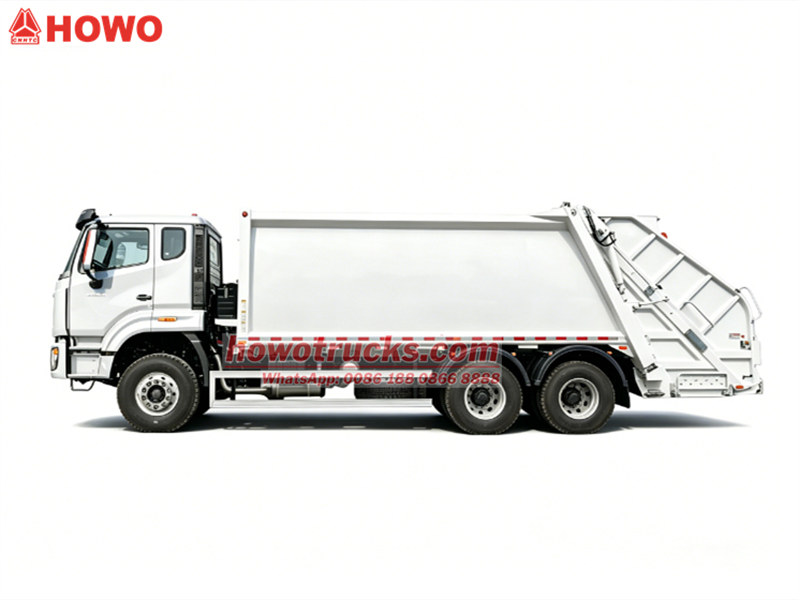

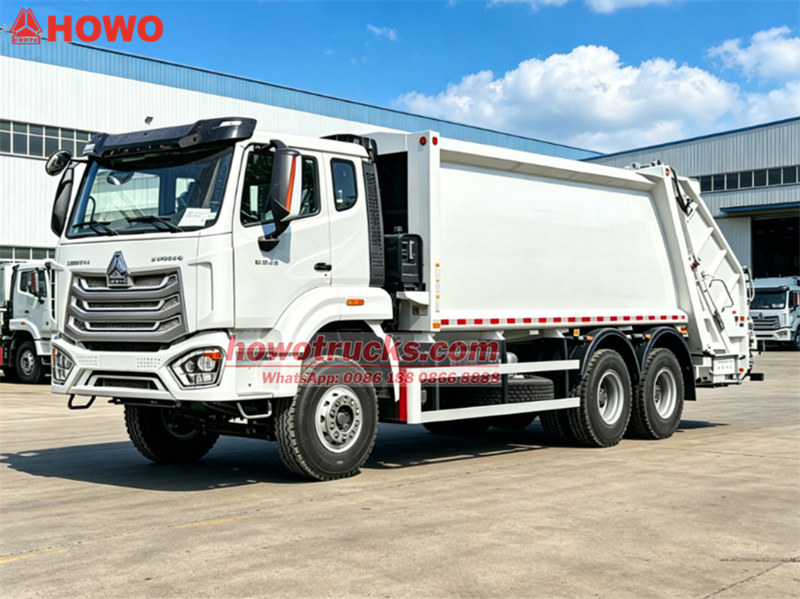

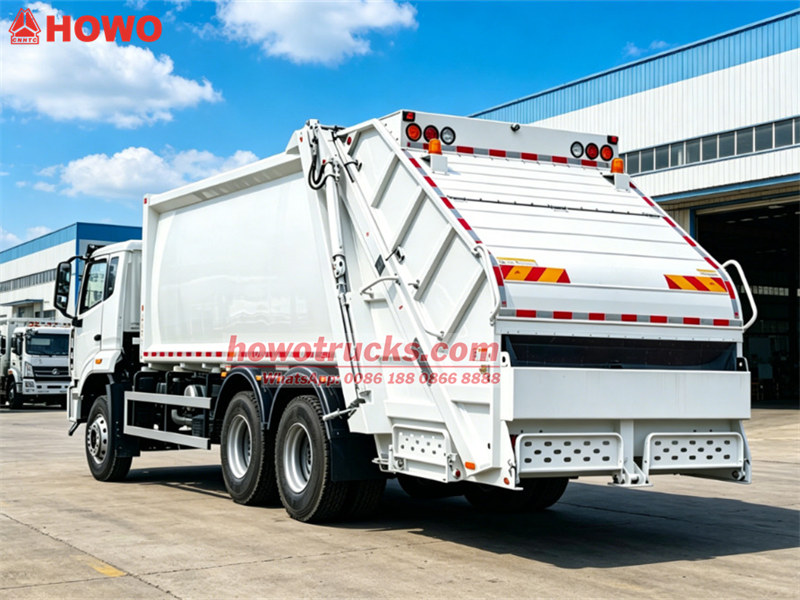

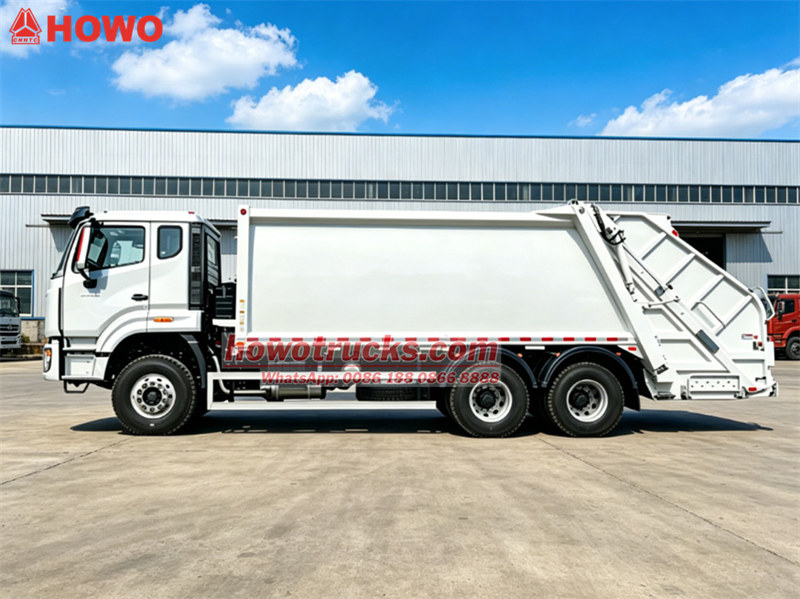

*SINOTRUK HOWO Heavy Duty Rear Loader Truck
20CBM Garbage Trash Compactor Truck
HOWO Heavy Duty compactor lorry*
-----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS Group
Features:
► Chassis: Based on SINOTRUK 6x4 chassis, with 340HP diesel engine
► Tank Volume: Garbage compactor tank capacity 20CBM
► Tank construction: Tank made of 4-5mm thick reinforced steel (side 4mm, bottom 5mm)
► Compression System: Hydraulic compaction mechanism, electrically controlled with manual override
► Operation Scope: Suitable for municipal solid waste collection, commercial refuse compaction, and urban sanitation operations
|
HOWO NX 20CBM back loader Truck |
|
|
Model |
CSC52506YSLJC |
|
Driving Type |
6*4 |
|
Gross Weight |
25000kg |
|
Related Loading Mass |
12700kg |
|
Curb Weight |
11680kg |
|

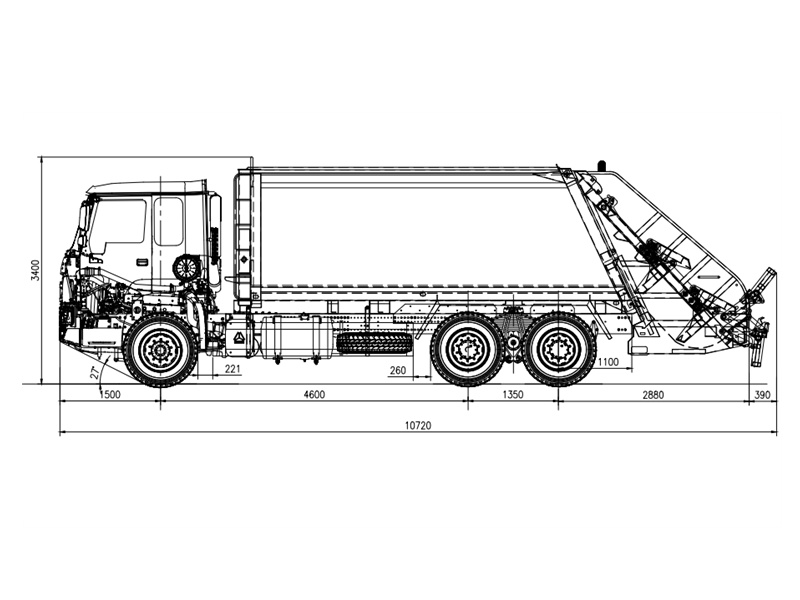

Dimension |
10500*2380*3400mm |
|
Wheelbase |
4600+1350(mm) |
|
Front Axle Loading Capacity |
7000kg |
|
Rear Axle Loading Capacity |
13000kg x 2 |
|
Approach angle |
27° |
|
Departure angle |
14° |
|
Front Suspension |
1130mm |
|
Rear Suspension |
2140mm |
|
Tire |
12.00R20 |
|
Max Speed |
90 (Km/h) |
|
Fuel tank |
400L |
|
Engine Parameters |
|
|
Model |
WP10.340E22 |
|
Horse Power |
340 hp |
|
Displacement |
9.726L |
|
Emission Standard |
Euro 3 |
|
Type |
6-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
|
Gear Box |
HW19710 transmission, Manual, 10-speed forward, 1 reverse gears |
|
Superstructure Parameter |
|
|
Tank Volume |
20 CBM |
|
Tank Shape |
Arc-shape |
|
Tank Material thickness |
Bottom:4mm Side:4mm |
|
Tank manufacturing process |
Whole board manufacturing |
|
Tank Material |
Q235 (Special Steel) |
|
Compression Ratio |
1 : 3.4 |
|
The effective volume of the bucket |
≥0.8m³ |
|
Loading cycle time |
≤40 s |
|
unload garbage time |
≤45s |
|
control method |
Automatic,Manual |
|
Maximum pressure of hydraulic system |
20MPa |
|

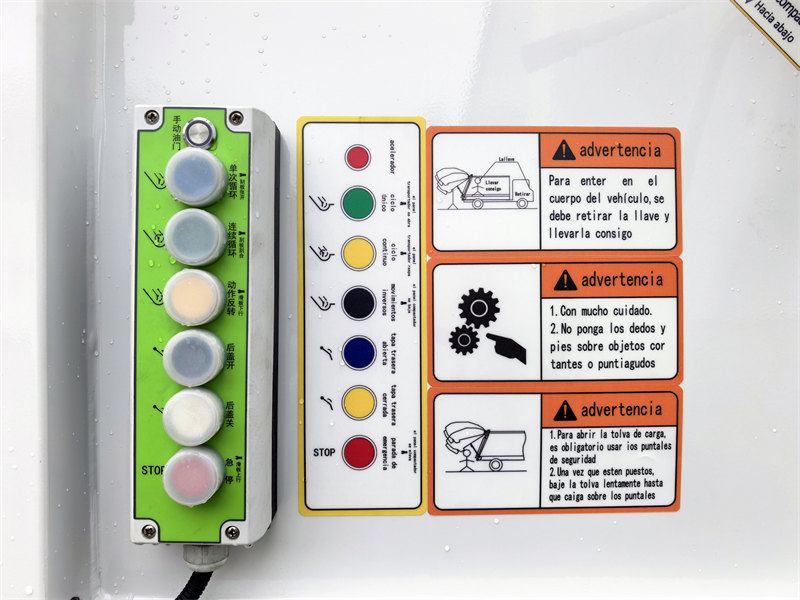

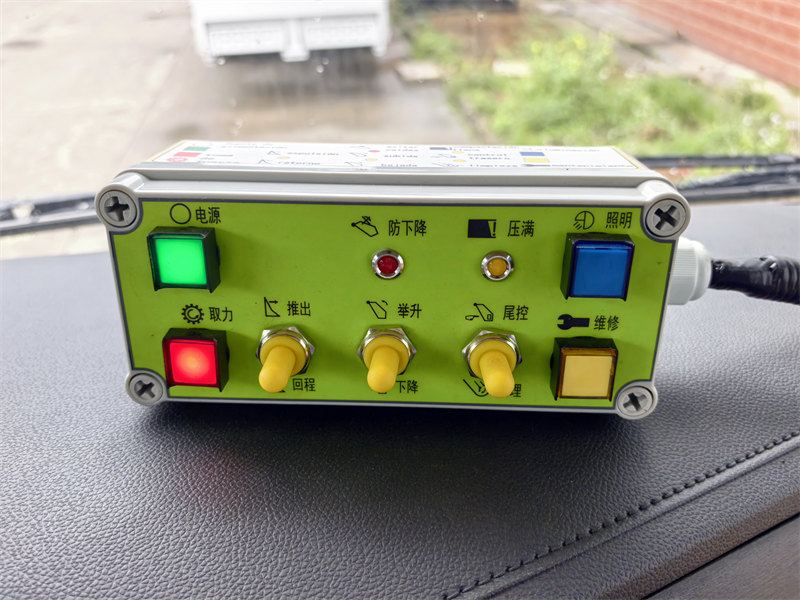

Control System |
PLC |
|
Control panel |
English or Your language |
|
Engine power control |
Fully automatic control |
|
standard accessories |
Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual…… |
|
Optional |
** Back alarm and Camera can be equipped. ** Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose. |
✦Ⅲ.Feature for Howo Heavy 20CBM Garbage Trash Truck:
1. Highly Efficient Hydraulic System Integration:
► Hydraulic system parameters are precisely matched based on waste composition, compression curve, and operating cycle time.
► This is achieved through accurate calculation of pump displacement, cylinder size, valve assembly flow rate, and pipeline pressure loss.
► Smooth switching between "low-speed, high-torque" and "high-speed, light-load" operation is realized, avoiding power waste and reducing system impact.
► Adaptable to the complex composition of African waste (containing large amounts of scrap and hard waste) and unstable compression loads.
2. High Durability of Body Structure and Materials
► The vehicle model utilizes finite element analysis (FEA) and topology optimization technology to simulate the entire process of waste compression, pushing, and unloading.
► Using T420 high-strength wear-resistant steel plates (Britll hardness ≥400), with a thickness of 4mm on the bottom and sides, combined with an integral molding process.
► The design avoids water accumulation areas, and with cathodic electrophoretic primer anti-corrosion treatment and robotic automated welding processes, the welds have high strength and excellent sealing.
► It can withstand the high temperature, high humidity, and dusty climate of Africa, reducing vehicle corrosion and extending service life.

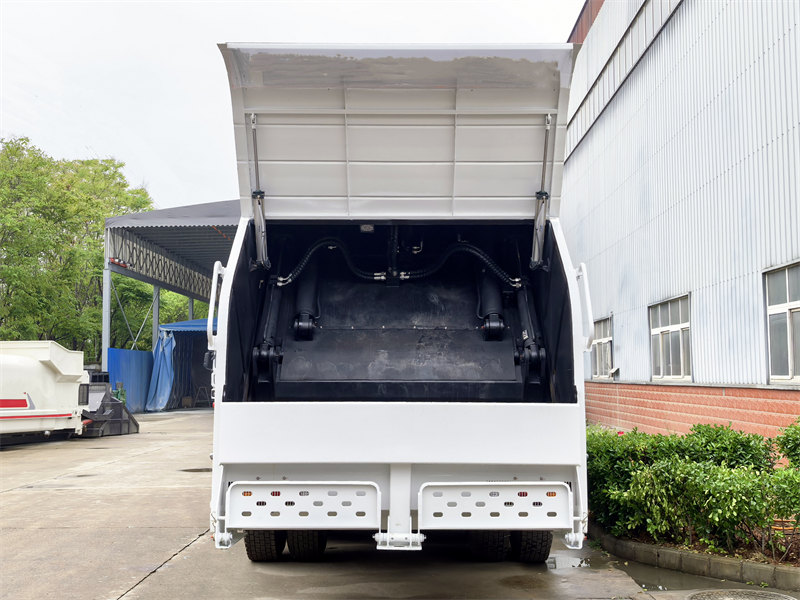

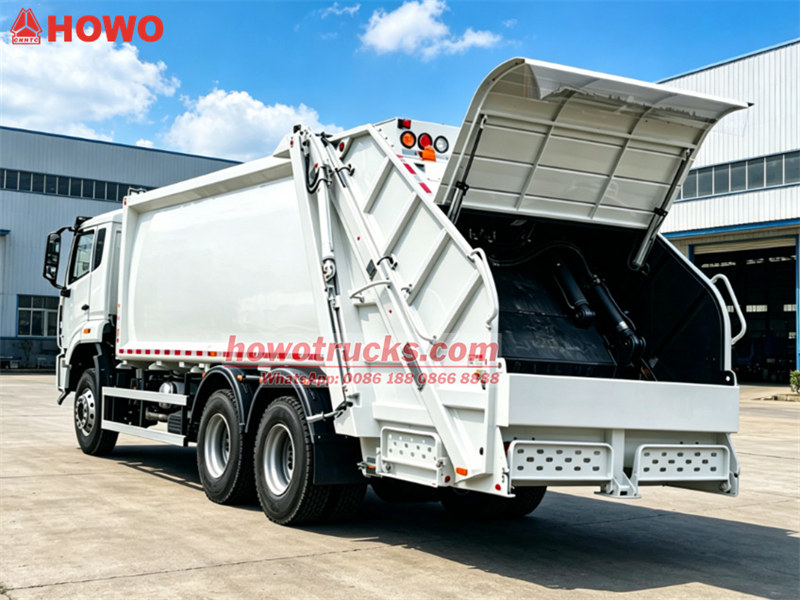

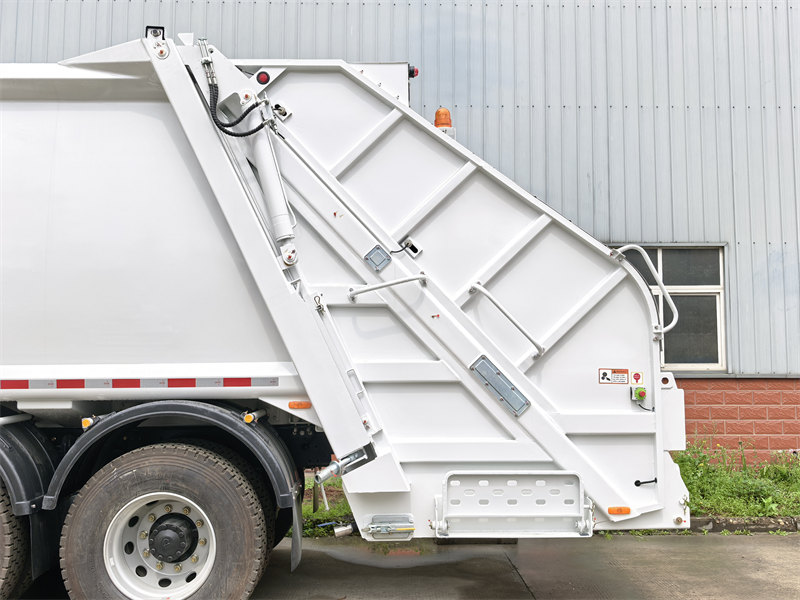

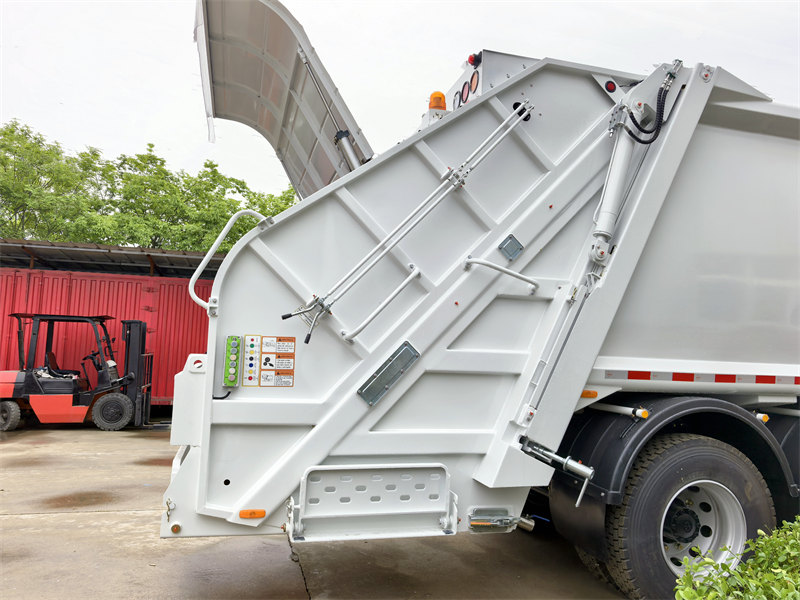

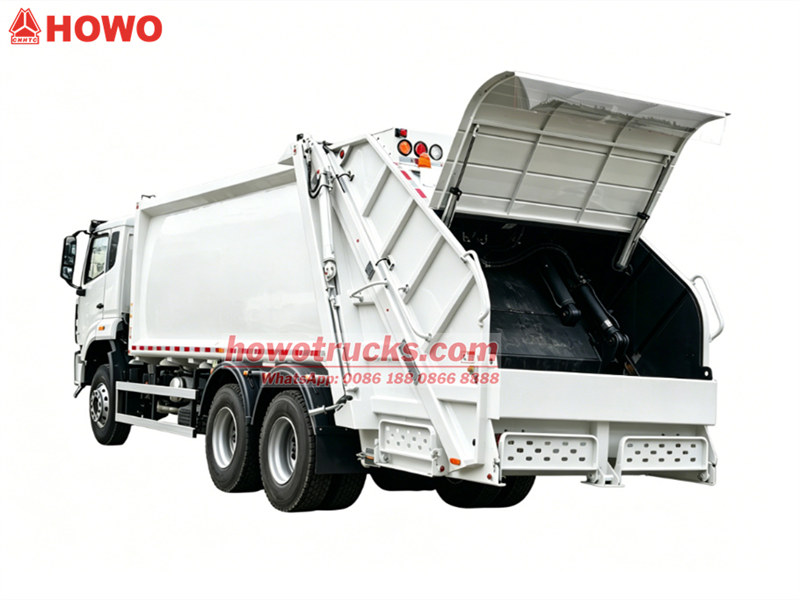

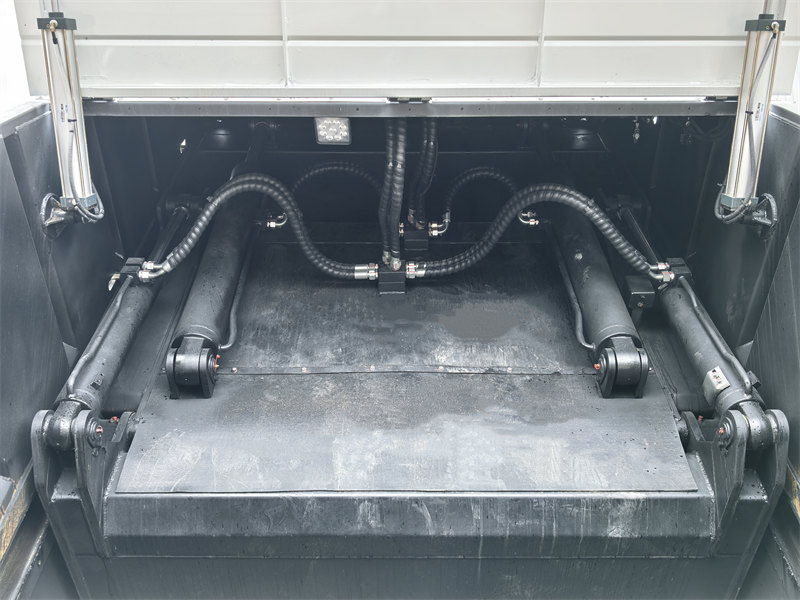

3. Structural Optimization of the Filling and Compaction Mechanism
► The optimized fit between the scraper and the curved plate prevents operational jamming caused by garbage clogging.
► A compression ratio as high as 1:3.4 significantly compresses loose garbage, further improving the utilization rate of the container.
► Key moving parts utilize high-molecular-weight polyethylene or self-lubricating composite materials to achieve continuous, quantitative lubrication, significantly reducing wear.

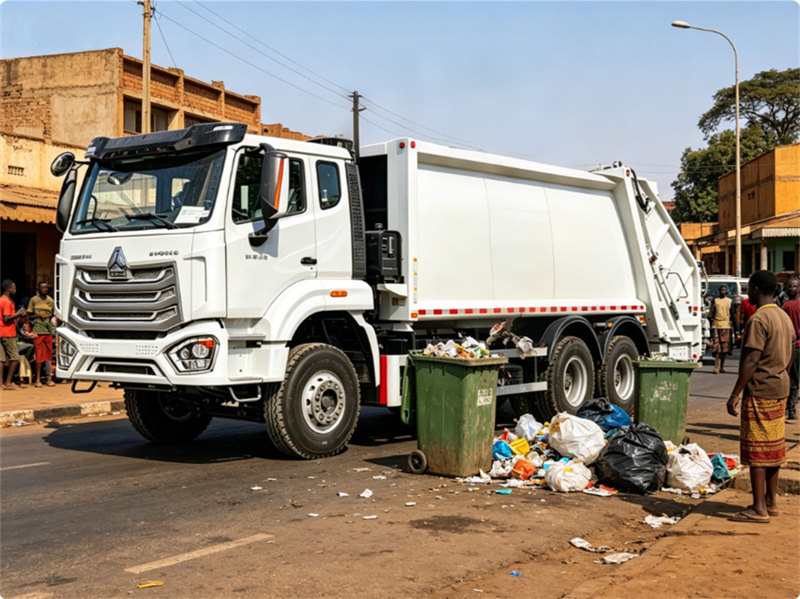

✦Ⅳ.Why is the HOWO garbage loader truck used in Africa?
1. Addressing the pain points of sanitation management in Africa and alleviating the pressure of "garbage siege".
The 20-cubic-meter large-capacity container with a high compression ratio of 1:3.4 allows for the loading of large amounts of garbage in a single trip, significantly reducing the frequency of collection. It is particularly suitable for the daily garbage collection needs of large and medium-sized cities in Africa. The 340HP high-power engine easily handles heavy-load garbage transportation, avoiding collection delays caused by insufficient power and helping to alleviate the local garbage accumulation problem.
2. Withstanding the complex working environment in Africa, reducing operating and maintenance costs.
The vehicle's 6x4 drive system, along with a 27° approach angle and a 14° departure angle, can flexibly handle complex road conditions such as potholes, flooded roads, and slopes, preventing the vehicle from getting stuck. T420 wear-resistant steel plates and cathodic electrophoretic anti-corrosion treatment resist sand and dust abrasion and rain erosion, reducing vehicle rust and malfunctions.
3. Adapting to the current manpower and operational conditions in Africa, improving operational feasibility.
The professional competence of sanitation workers in Africa varies greatly, and there is a lack of professional training in equipment operation and maintenance. This vehicle's PLC intelligent control system is easy to operate, supports both automatic and manual modes, and can be used without specialized skills. The control panel supports English and local languages, further lowering the barrier to entry.
⇒ Products--100% China HOWO factory trucks!
⇒ Shipping--100% fast,Convenient, Efficient!
⇒ Guarantee--7 days + 24 hours Safety Service!
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
The Sinotruk HOWO back loading garbage truck boasts high-horsepower power, large capacity, and easy operation, precisely matching the core needs of efficient sanitation and waste collection in Africa. Its durable and highly adaptable hydraulic system, body structure, and compression mechanism specifically address the high wear and tear and high load challenges of the African operating environment. Meeting China's National II/III emission standards, offering low-cost operation, and strong environmental tolerance, it perfectly aligns with the current state of sanitation management and economic capabilities in Africa. It alleviates the pressure of "garbage siege" while adapting to complex local road and climate conditions, simultaneously reducing labor and maintenance costs.
